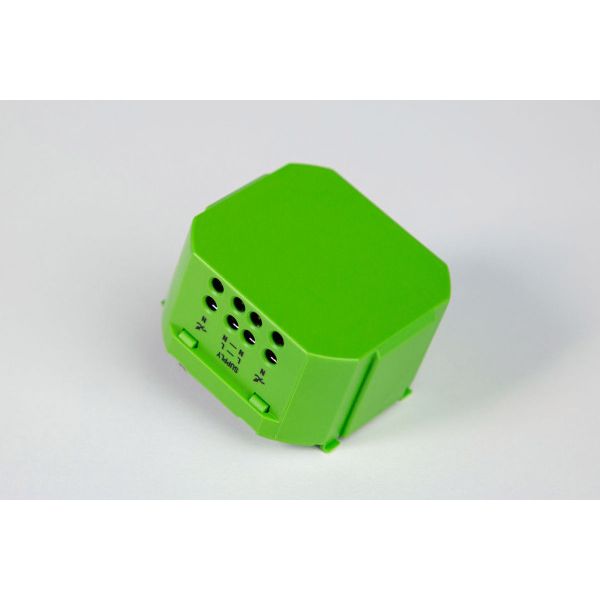

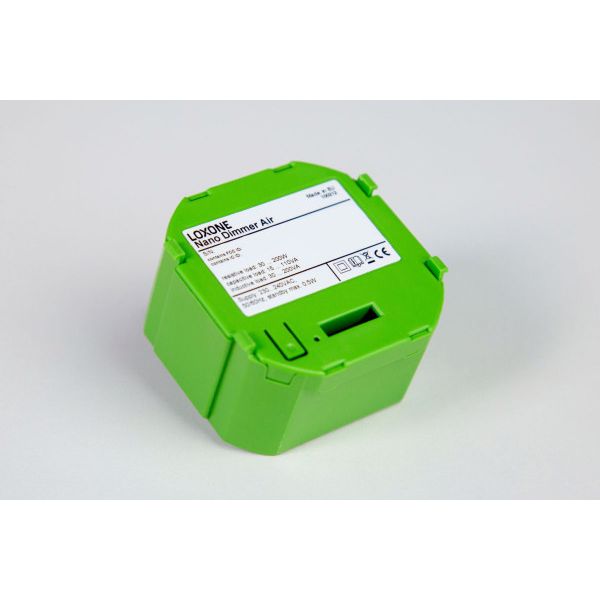

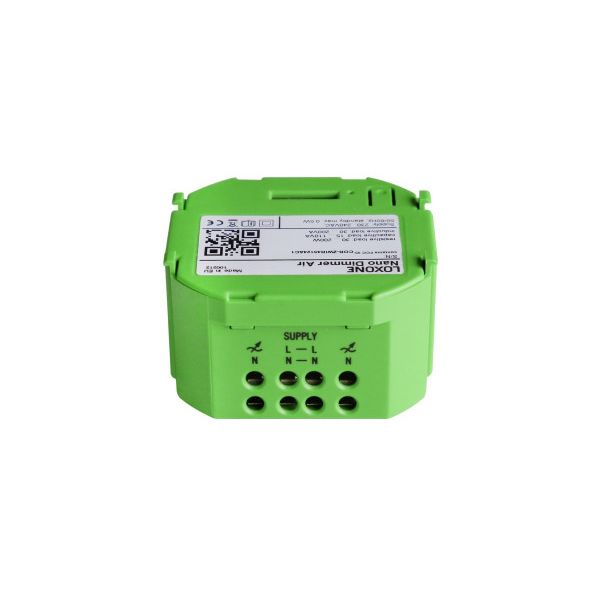

Nano Dimmer Air

Easy to integrate into your smart home with existing lighting.

• Loxone Air - The perfect retrofit solution
• Perfectly suited to touch switches for nano devices
• Rising or falling edge dimming
• 1-channel dimmer
• CE certified and tested

• 1-channel flush dimmer
• The Loxone Nano Dimmer Air is the device for rising or falling edge dimming of mains lamps

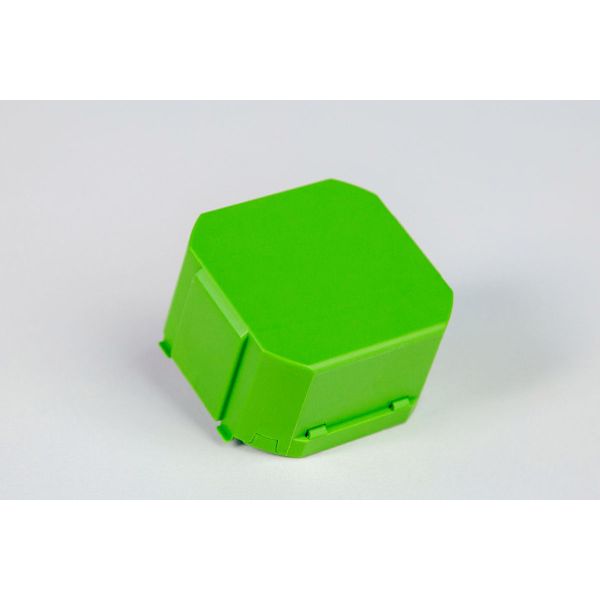

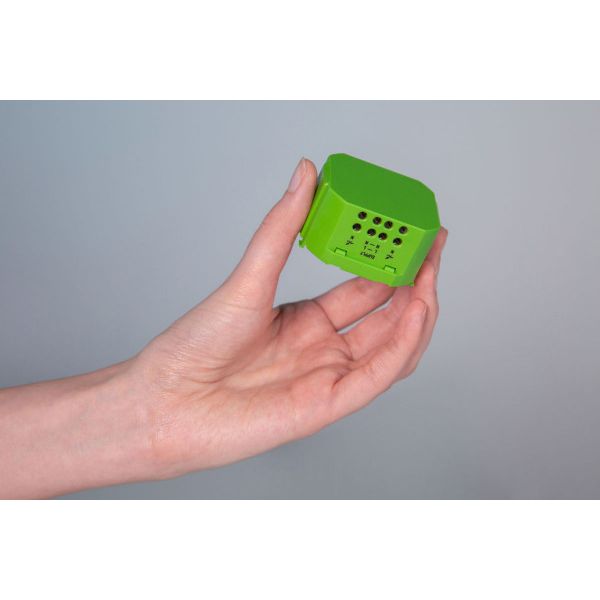

Perfect fit

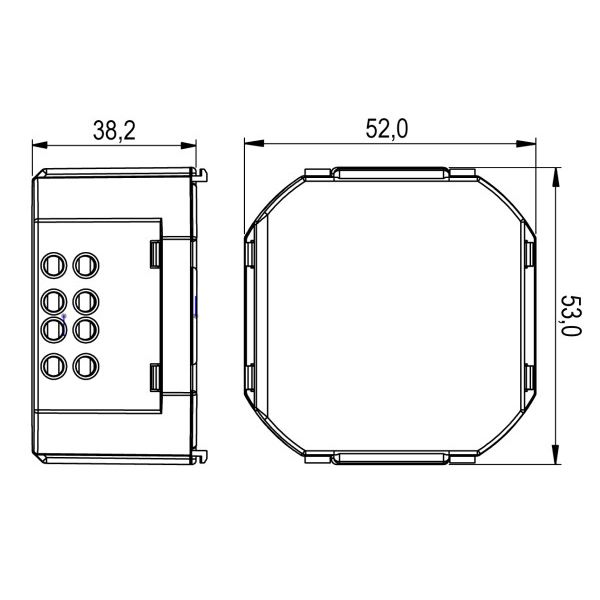

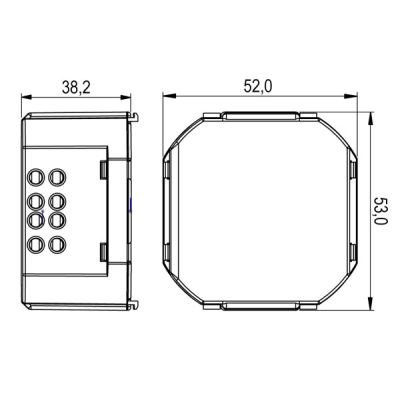

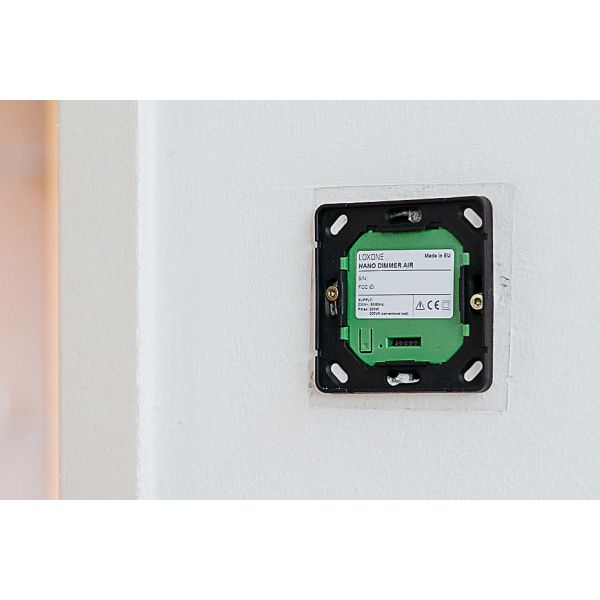

Its dimensions are 53 X 53 X 31 mm. The compact Nano Dimmer Air is a flush module that easily fits into the junction box space behind most switches.

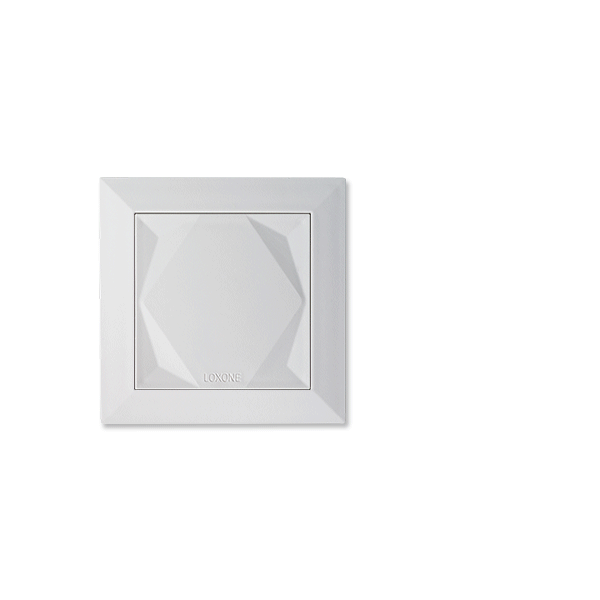

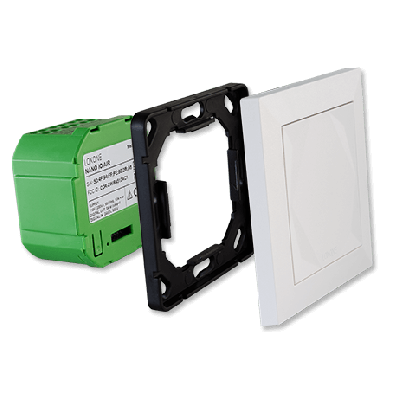

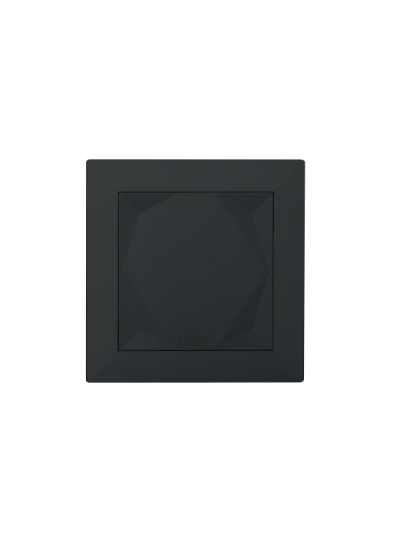

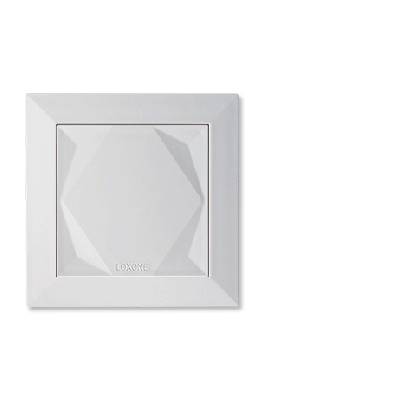

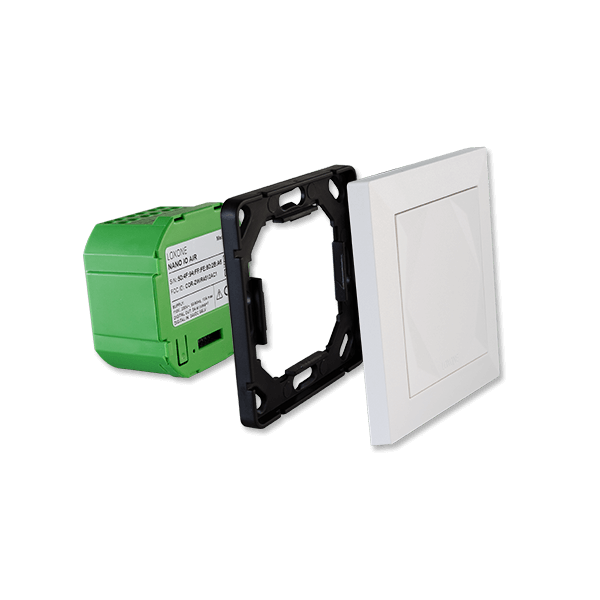

Touch switch and Nano Dimmer Air

You can connect the Nano device's touch switch directly to the Nano Dimmer Air, providing full functionality, capacitive touch surface, five touch points and clicking audio feedback.

Certified and tested for your safety

The compact design meets all safety and CE standards.

Low power consumption

All Loxone Air products are optimized for low power consumption. The Nano Dimmer Air typically consumes 0.4W in standby mode.

Technical specifications:

• Power supply: 230V AC, 50/60 HZ
• Power consumption: approx. 0.4W
• Single dimmed output.
• Rising or falling edge dimming selectable in the program.
• With conventional load (lamps, coil transformers) max. 200W  (200VA) - min. 30W  (30VA)
• With capacitive load (LEDs, electronic transformers) max. 110W  (110VA) - min. 15W  (15VA)
• Based on Loxone Air technology
• Ambient temperature: 0°C-35°C
• Frequency: 868 MHz (SRD band Europe), 915MHz (ISM Band Region 2)
• Dimensions: 53 x 53 x 31mm
• IP protection: IP20
• Onboard microprocessor
• Max. relative humidity: 95% (non-condensing)

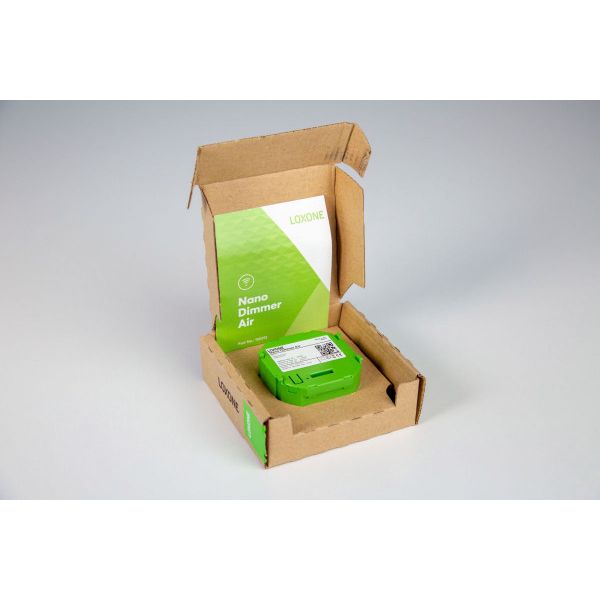

What's in the box?

• 1x Nano Dimmer Air
• 1x User manual
