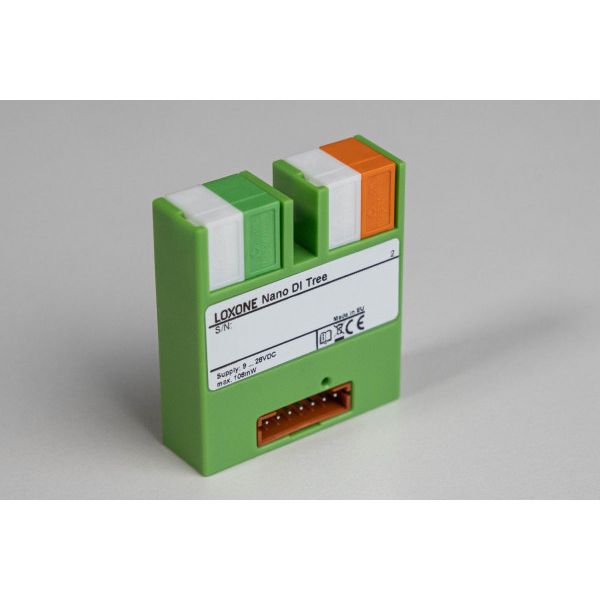

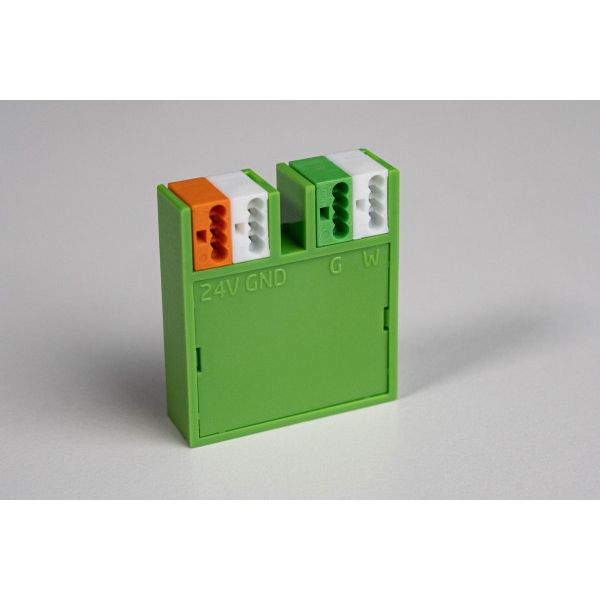

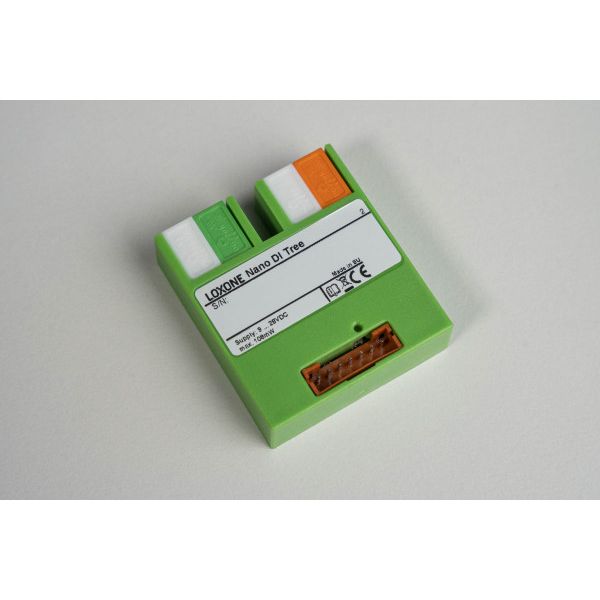

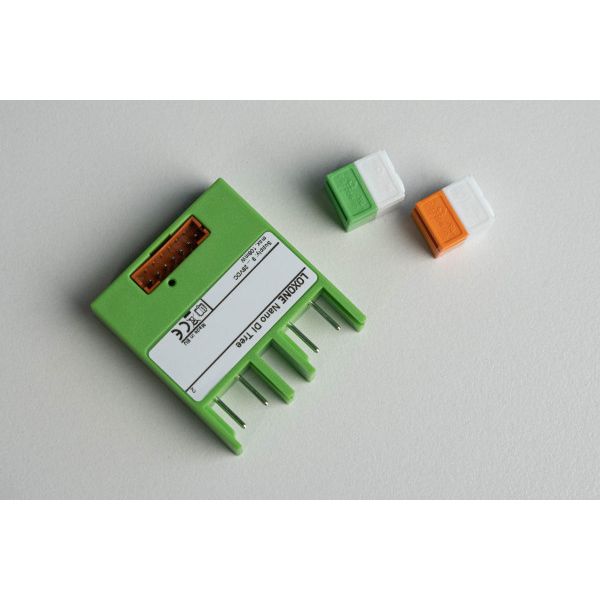

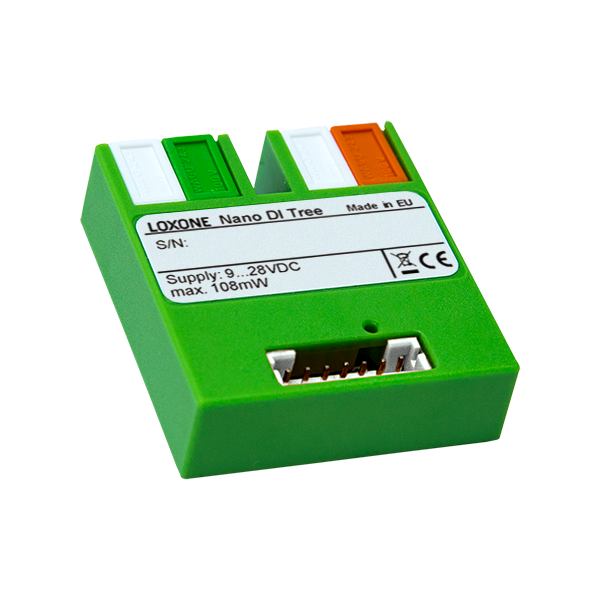

Nano DI Tree

The Nano DI Tree fits into the smallest junction box. This device is ideal for integrating any switch, push button, window/door sensor into the Loxone system, taking advantage of Loxone Tree technology.

• For integrating momentary switches and contact closure inputs

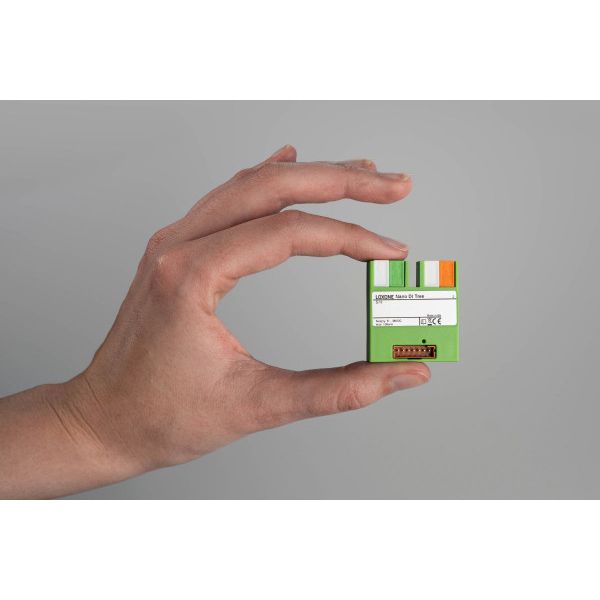

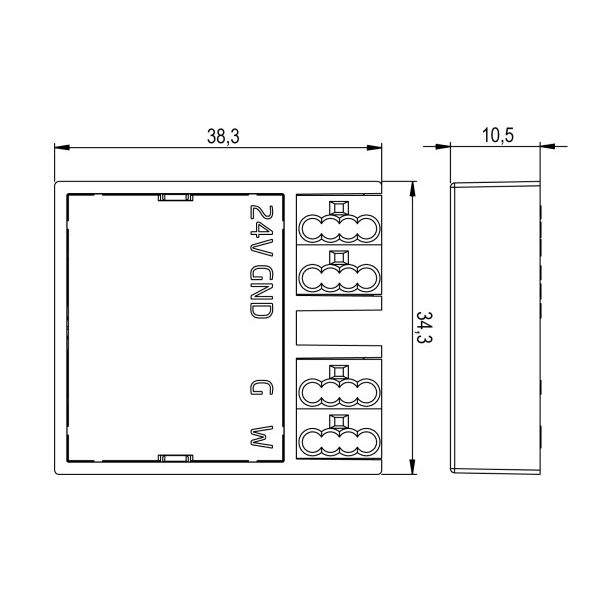

• Fits into the smallest junction box - 38.4 x 34.2 x 10.5 mm
• Easily fits into recessed box
• Uses Loxone Tree technology
• Every digital input can be used as a frequency counter up to 500Hz
• CE tested and approved

Technical specifications:

• Power supply: 24VDC (min 9VDc - max 28VDC)
• Current consumption: 108 mW (when all inputs are in use)
• Protection class: IP20
• 6 digital inputs
• Status indicator LED
• Normal operating temperature: 0-55 C°
• Stripped cable length: 5mm
• Cable diameter: 0.25-0.8 mm2

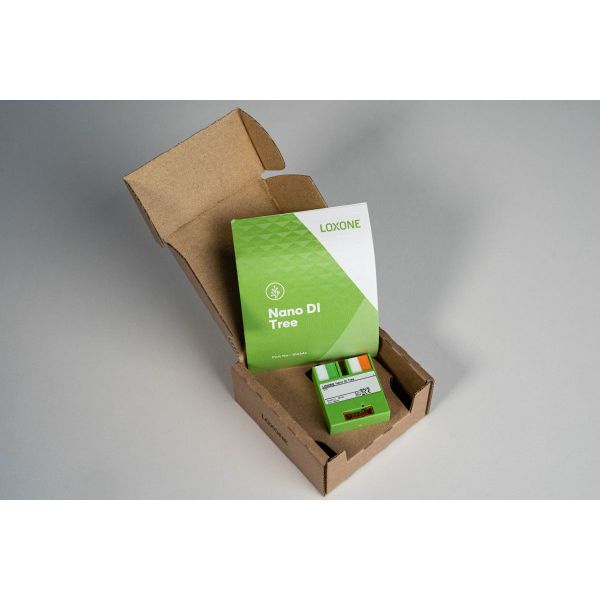

What's in the box?

• 1x Nano DI Tree
• 1x Quick installation guide
