DI Extension
361,44 EUR
284,60 EUR
The renewed DI Extension offers 20 digital inputs in 2 DIN units wide, taking up space in the distribution cabinet. It simplifies the wiring of sensors and conventional switches, push buttons, plus each of the digital inputs can be used as a frequency counter input up to 250Hz.
Disponibilitate:în stoc
SKU
100283
MarcăLoxone
The new DI Extension offers 20 digital inputs in the space of two circuit breakers. This makes it easier to wire sensors and connect third-party switches. Furthermore, the inputs can also be used as frequency counters, up to 250 Hz.
- 20 digital inputs
- Space-saving
- For sensors and push buttons
- Frequency counting up to 250 Hz
Technical specifications
- 20 digital inputs
- Power supply: 24VDC (min 10VDC, max 28VDC)
- Current consumption: 250 mW
- Protection class: IP20
- Operating temperature: 0- +55°C
- Maximum operating humidity: 95 %
- Required stripped cable length: 7mm
- Cable diameter: 0.14-0.5 mm2
- CE certified and tested

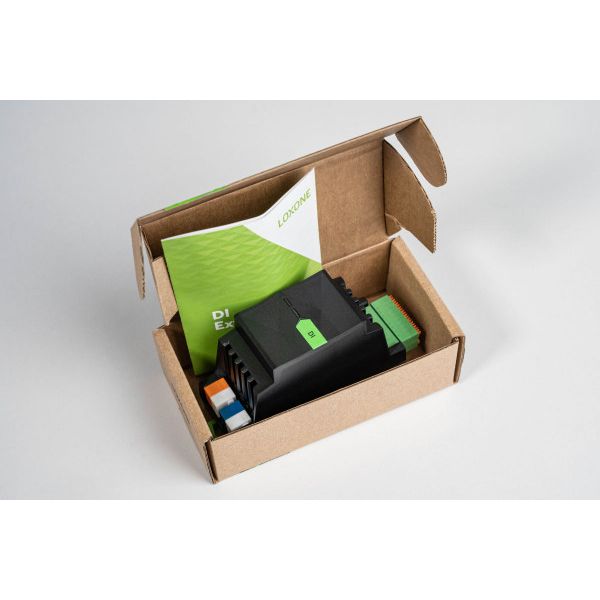

Package contents
- 1x DI extension
- 1x Quick commissioning guide
| SKU | 100283 |
|---|---|
| Producător | Loxone Electronics GmbH. |
| Marcă | Loxone |
| Fișă tehnică | |
| Declarație de conformitate | |
| Certificat ETL | |
| Tariff No. | 85371091 |
