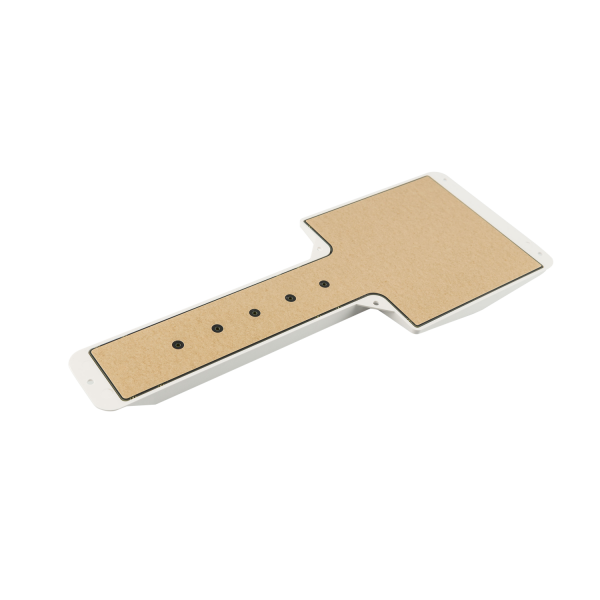

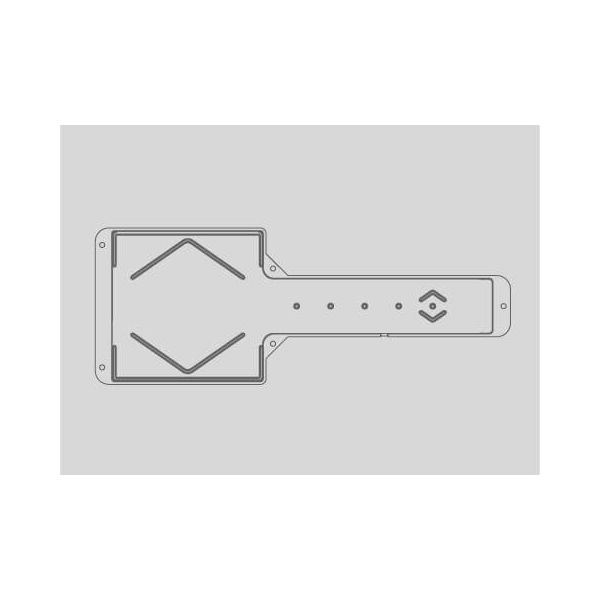

Touch Surface Air
1.406,66 RON
1.107,61 RON

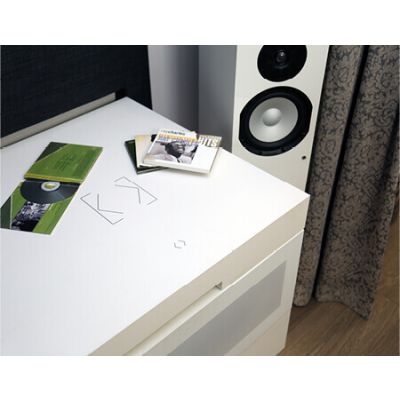

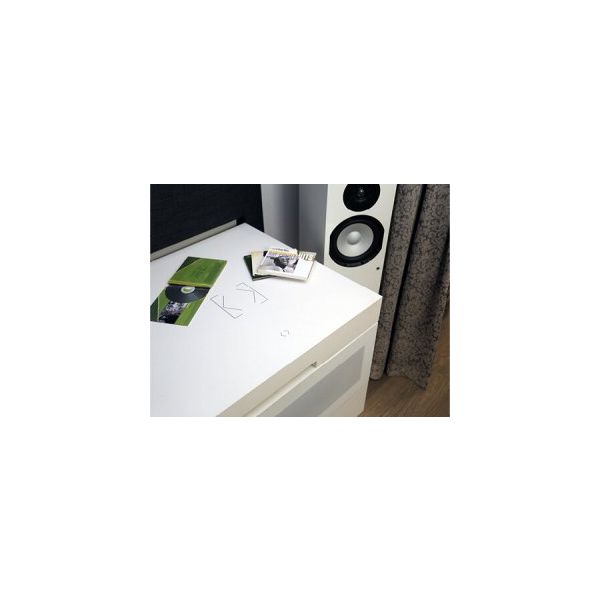

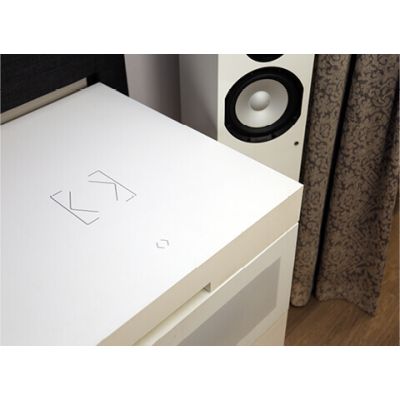

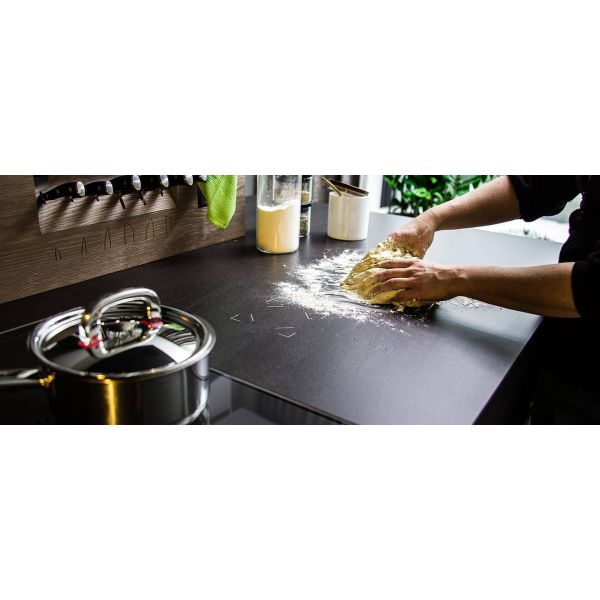

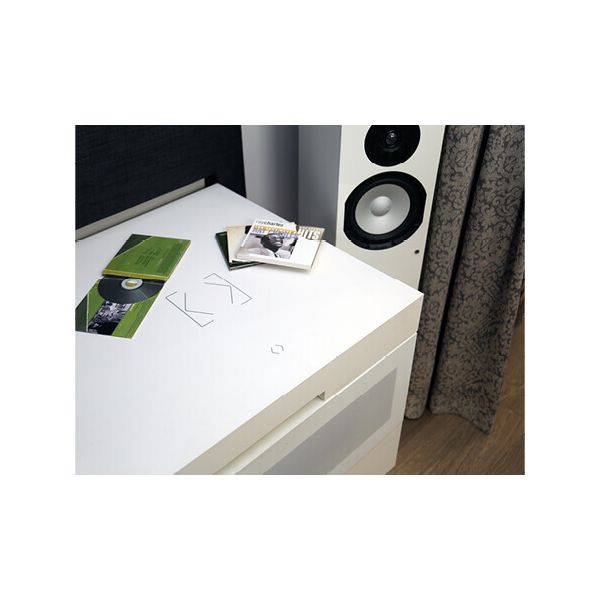

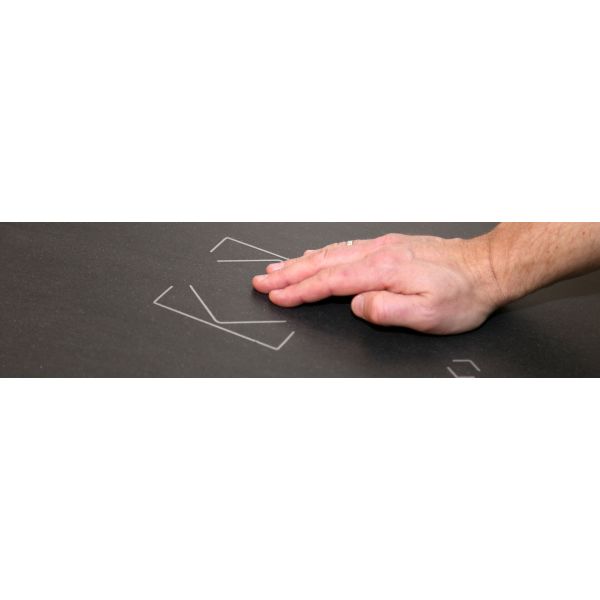

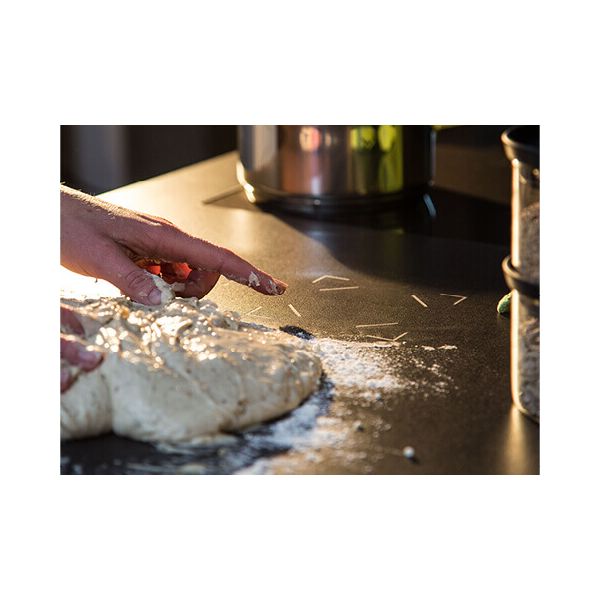

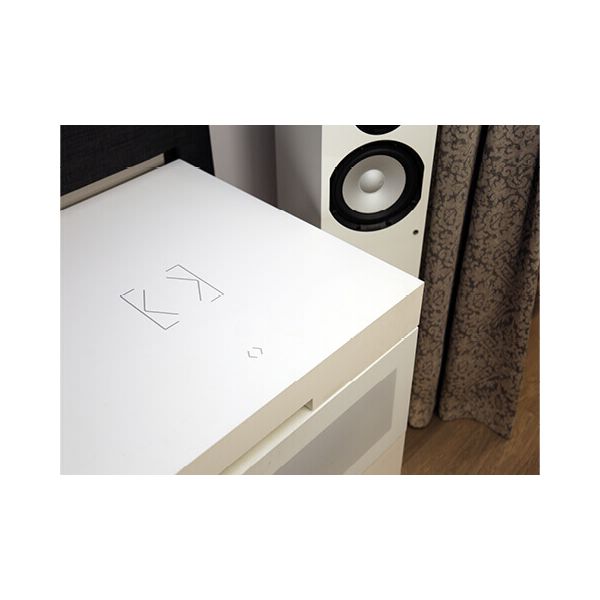

Extraordinary control that can be integrated directly into the hard furniture surfaces of your home. The Touch Surface puts Loxone's revolutionary touch switch concept in your hands - whether on the kitchen countertop or the living room table.
Disponibilitate:în stoc
SKU
100285
MarcăLoxone

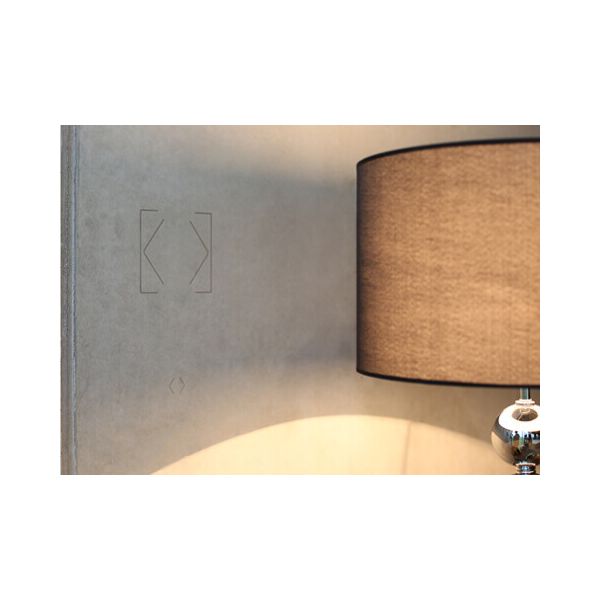

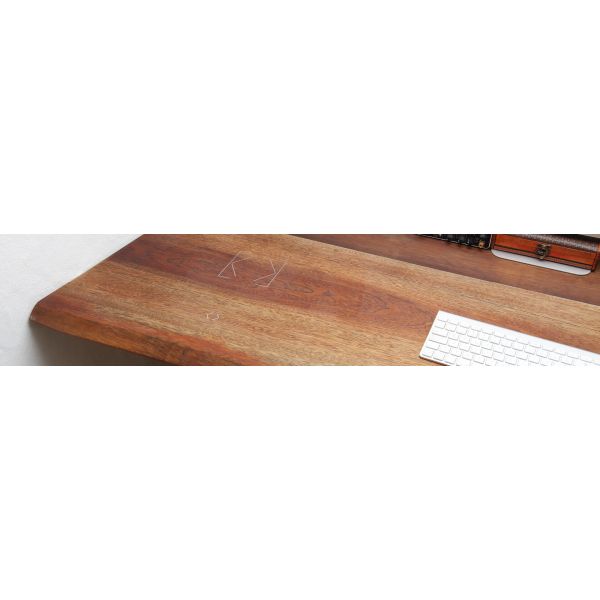

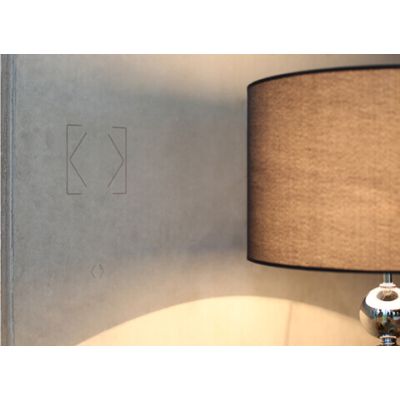

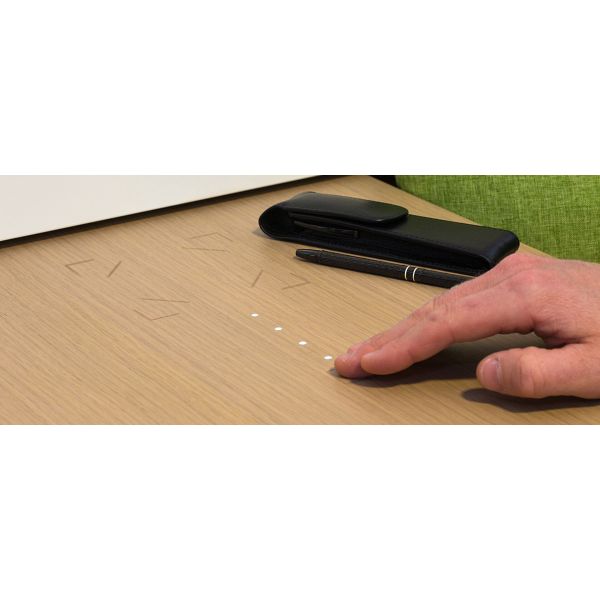

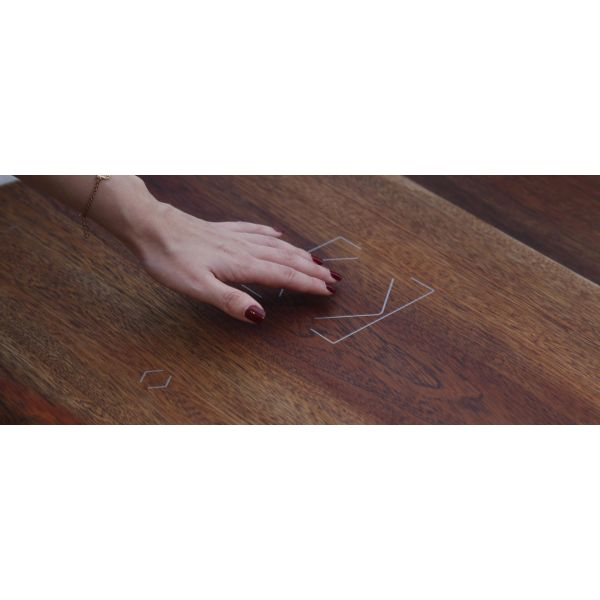

Revolutionary new control solution that you can build into your home furnishings. With the hidden Touch, you can control your smart home from your kitchen counter, desk:
- lighting, shading, multimedia system, anything

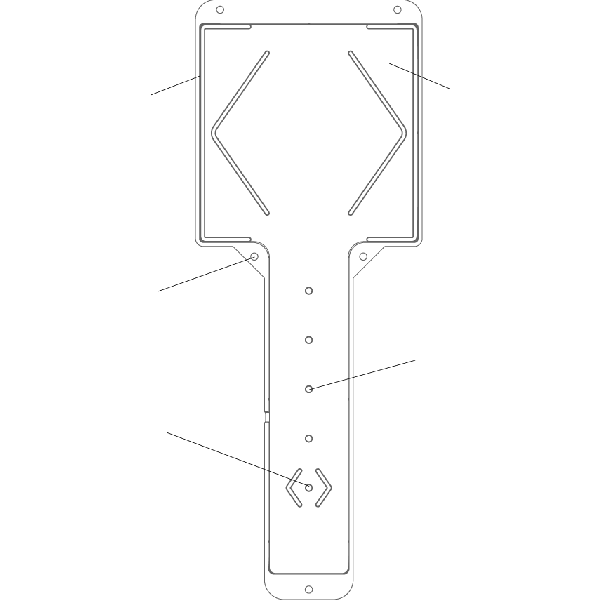

- 5 touch-sensitive buttons and one activation button

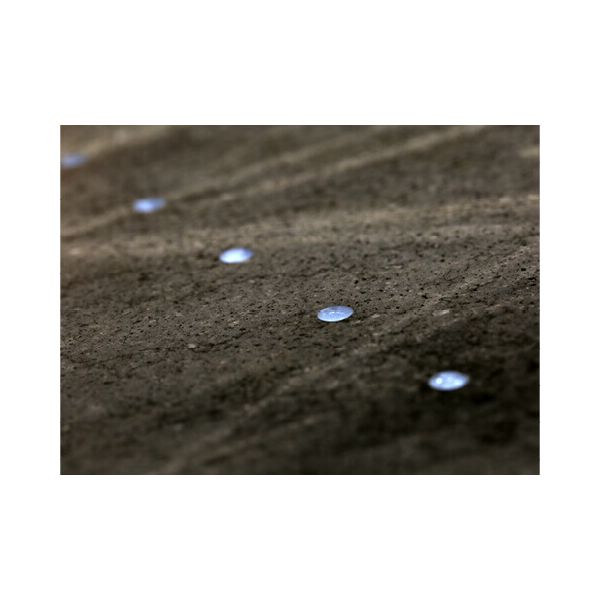

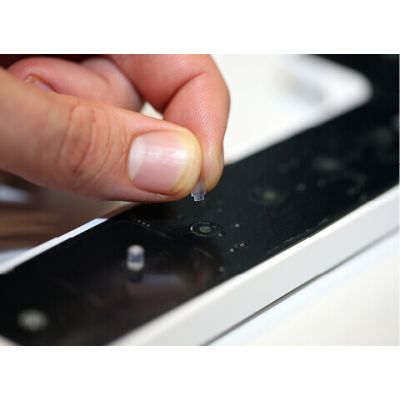

- LEDs indicating activation

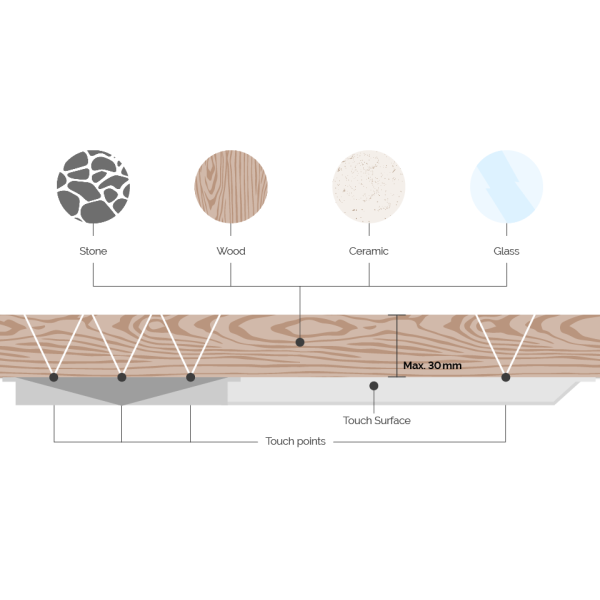

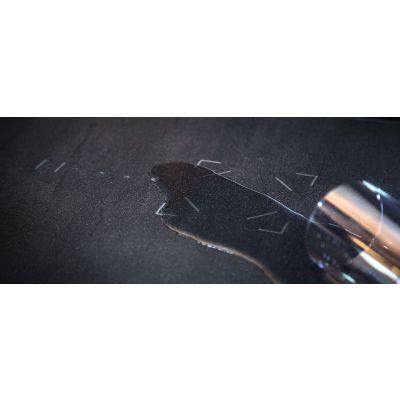

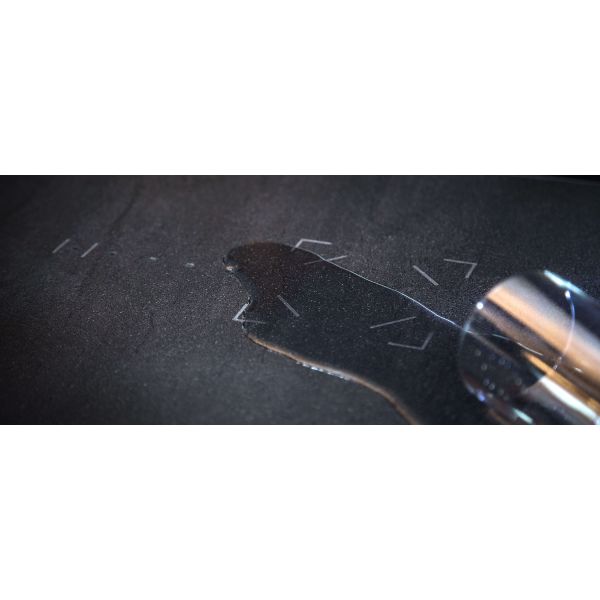

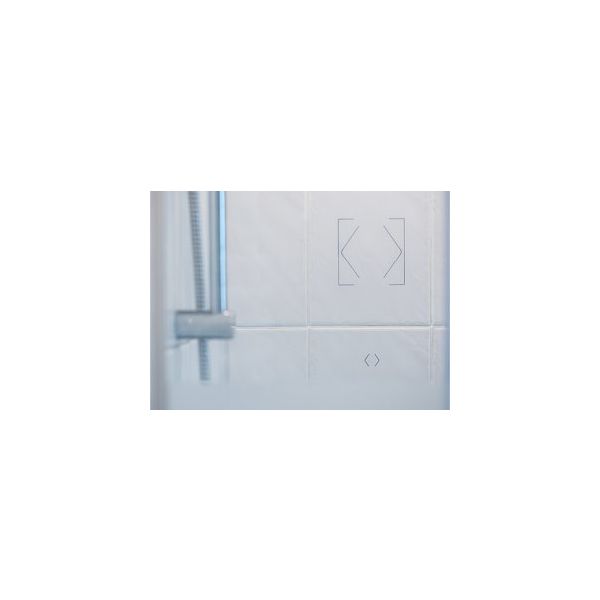

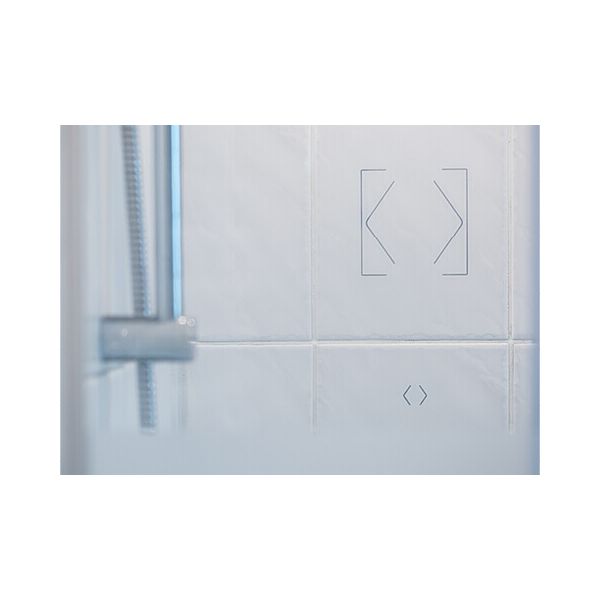

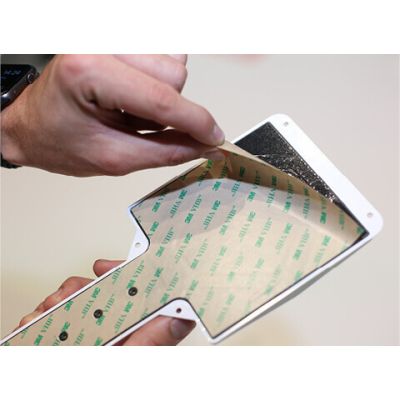

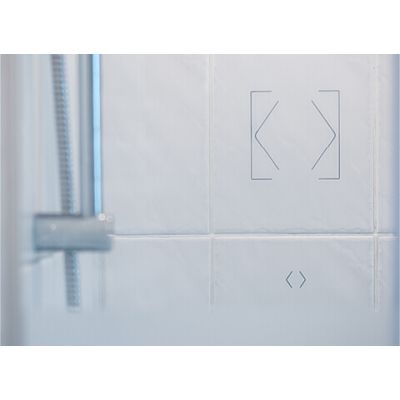

- can be placed under stone, wood, ceramic and glass
- optional feedback sound
power supply: 9 – 28VDC PELV / battery / adapter
maximum material thickness: 30mm
consumption: typically 67mW, max: 133mW (with LEDs in use)
operating temperature: 0 – 55°C
maximum humidity: 95% r. H
protection: IP20
cable cross-section for 24V connection: 0.14mm2 – 1mm2
stripped cable length: 7mm
Push-in technology: yes
frequency: 868MHz / 915MHz

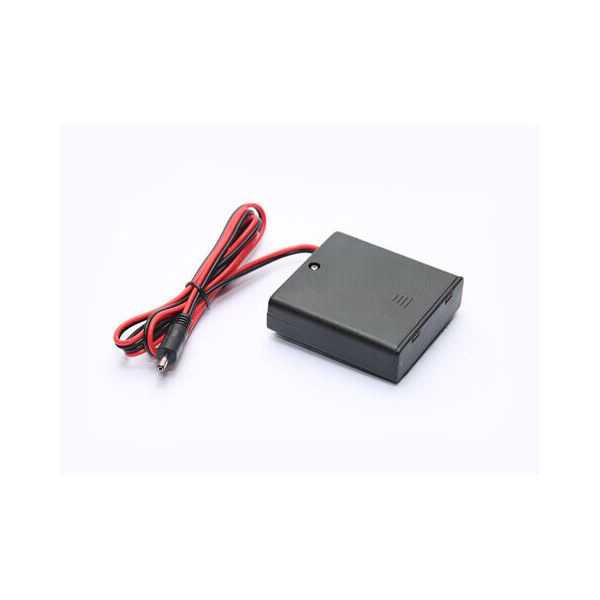

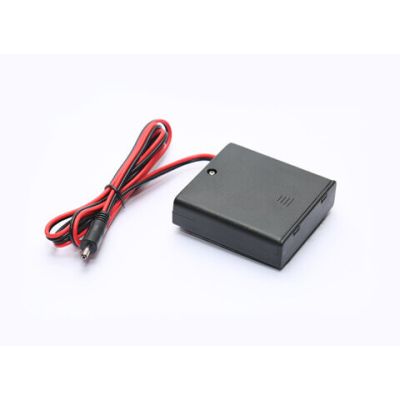

Template: If there is no outlet near your hidden Touch AIR device, use a battery. The package contains 4 built-in AA batteries, which provide long-lasting and reliable operation.
4x AA 1.5V battery
cable length: 1m / 39.37"
cable thickness: 0.4mm² / AWG26, UL1007

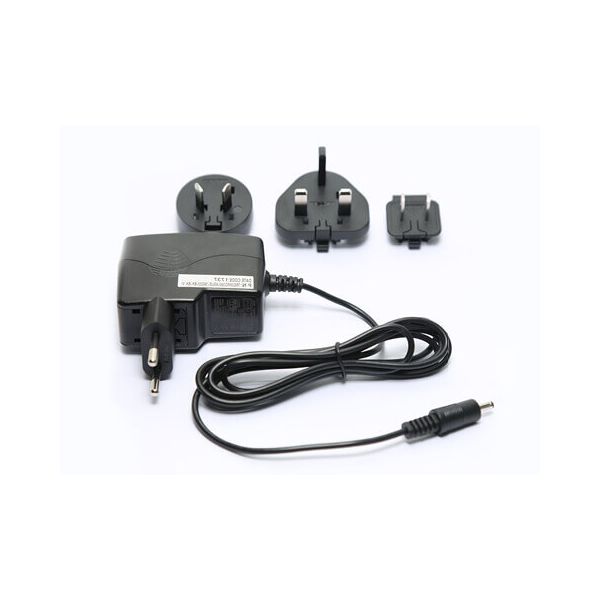

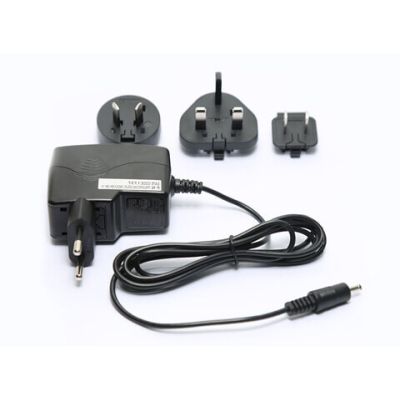

Technical specifications
- output voltage: 6VDC
- IP20 protection class
- operating temperature: 5°C - 50°C
- DC connector: 1.35 x 3.5mm / 0.05x0.13"

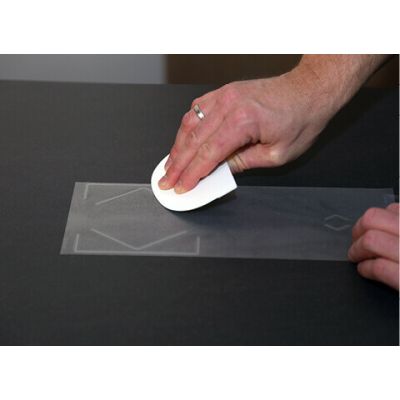

Template: https://www.verdom.hu/segitseg-kabelezeshez-telepiteshez
| SKU | 100285 |
|---|---|
| Producător | Loxone Electronics GmbH. |
| Marcă | Loxone |
| Fișă tehnică | |
| Declarație de conformitate | |
| Certificat ETL | |
| Tariff No. | 85365011 |
