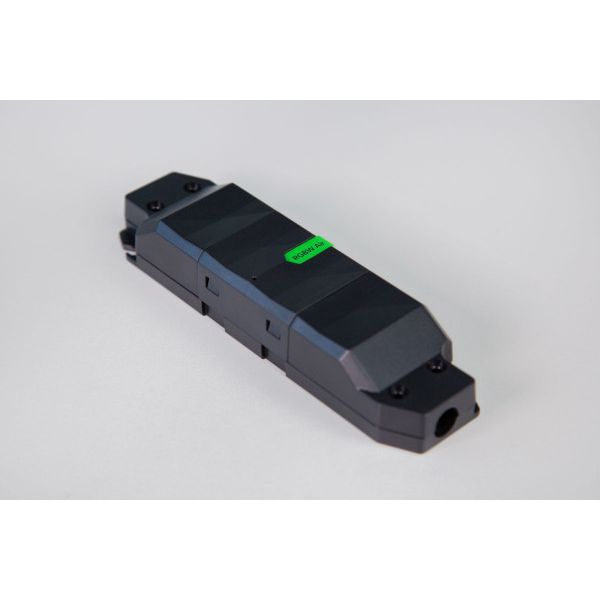

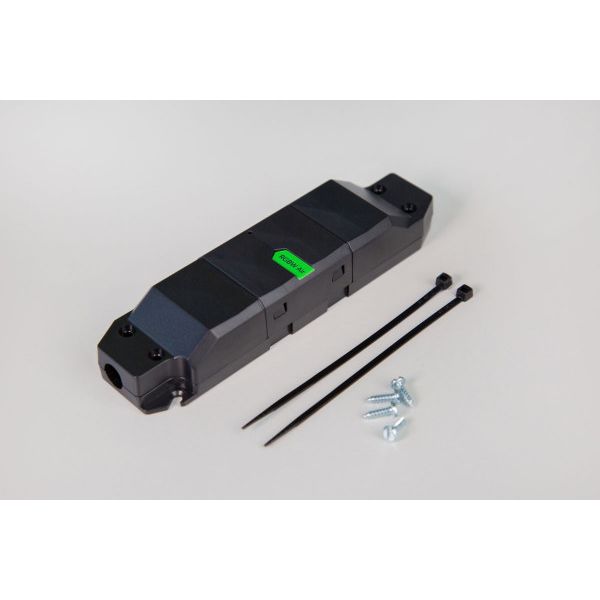

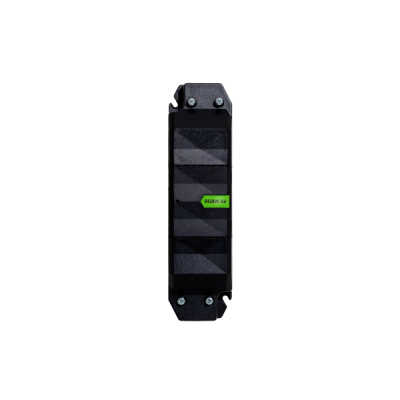

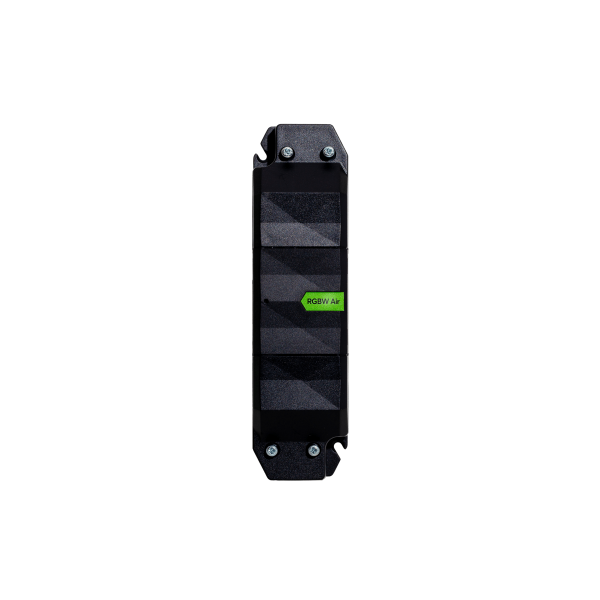

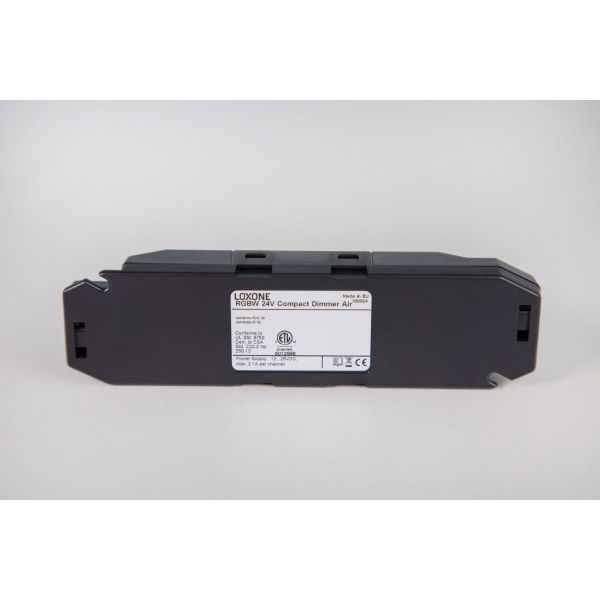

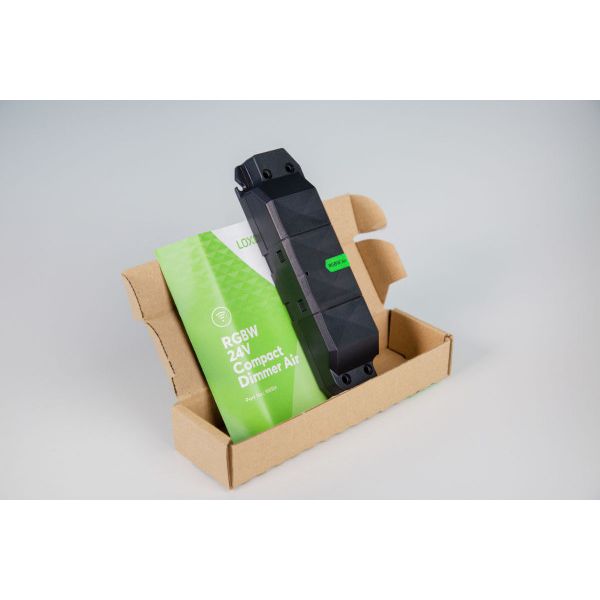

RGBW 24V Compact Dimmer Air
116,88 EUR
92,03 EUR
The 24V RGBW dimmer can be seamlessly integrated into the Loxone system, enabling intelligent control and automation of light sources such as LED strips. It is an efficient way to introduce different lighting moods.
Disponibilitate:în stoc
SKU
100324
MarcăLoxone
The 24V RGBW dimmer integrates perfectly into the smart home. It enables intelligent control and automation of light sources. With its help, different lighting images can be set.
- compact design
- decentralized installation
- simply installable modern lighting
- 0-100% dimming curve
- millions of RGB colors
- type Air
- power supply 12…28VDC (SELV)
- standby consumption <150mW
- output (per channel) 4x 50W PWM (max. 2.1A per channel) 100W at 12V 200W at 24V
- maximum cable length for LEDs 30m
- frequency 868MHz (SRD Band Europe), 915MHz (ISM Band Region 2) Max. Power 3.16mW
- IP protection IP20

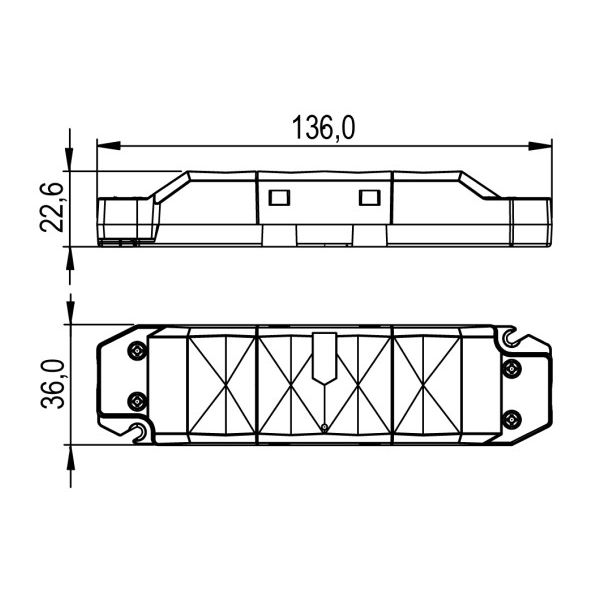

- dimensions 136x36x23mm
- ambient temperature 0…55°C
- relative humidity 95% r. H. (without condensation)
| SKU | 100324 |
|---|---|
| Producător | Loxone Electronics GmbH. |
| Marcă | Loxone |
| Fișă tehnică | |
| Declarație de conformitate | |
| Certificat ETL | |
| Tariff No. | 85371091 |
