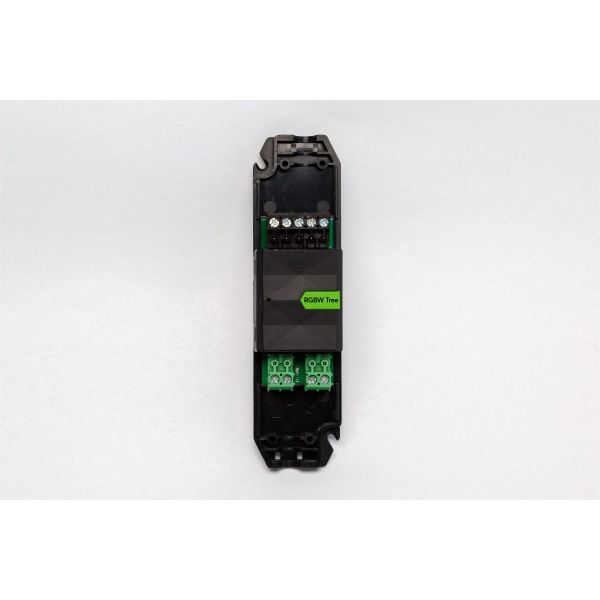

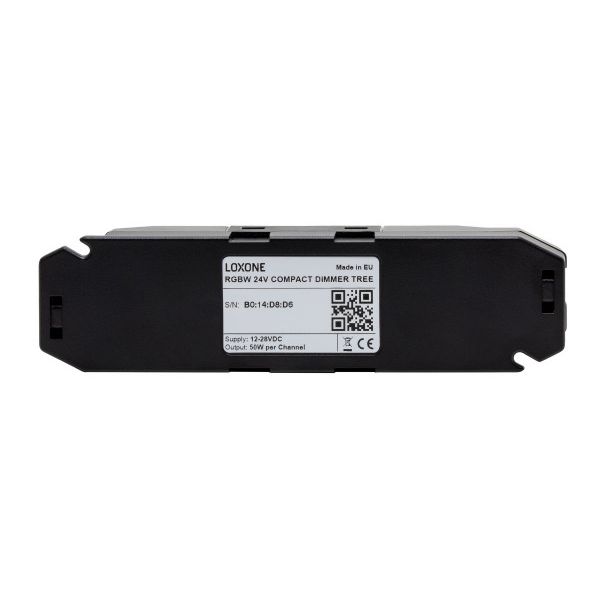

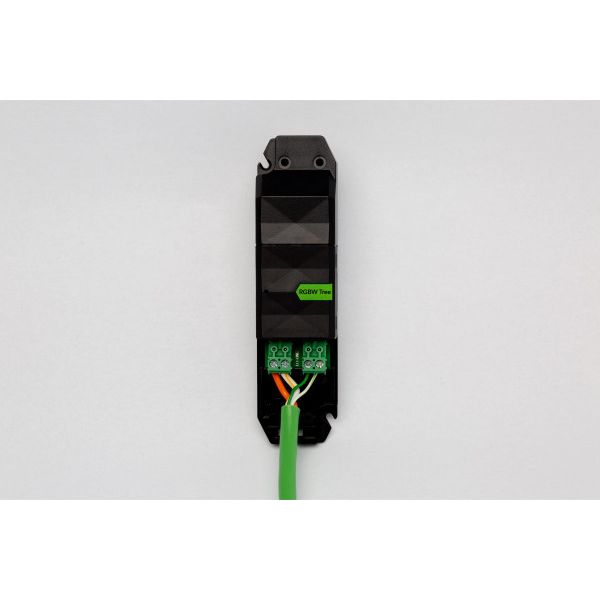

RGBW 24V Compact Dimmer Tree
100,15 EUR
78,86 EUR
The 24V RGBW dimmer can be seamlessly integrated into the Loxone system, enabling intelligent control and automation of light sources such as LED strips. It is an efficient way to introduce different lighting moods.
Disponibilitate:în stoc
SKU
100325
MarcăLoxone
Description
The 24V RGBW dimmer integrates perfectly into the smart system. It enables intelligent control and automation of light sources. With its help, different lighting images can be set.
- Compact design
- Decentralized installation
- Simply installable modern lighting
- 0-100% dimming curve
- Millions of RGB colors
Technical specifications
- Power supply: 12 - 28VDC (SELV)
- Standby consumption: <150mW
- PWM frequency: 123Hz
- Output (per channel) 4 x 50W PWM, (max. 2.1A per channel) 100W at 12V, 200W at 24V
- Maximum cable length for LEDs: 30m
- IP protection IP20

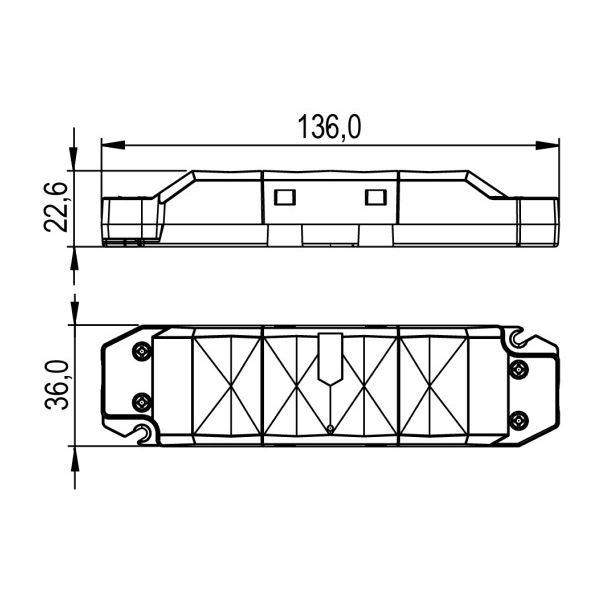

- Dimensions (LxWxH): 136 x 36 x 22.6 mm
- Operating temperature: between -40°C and 55°C
- Relative humidity 95% r. H. (without condensation)

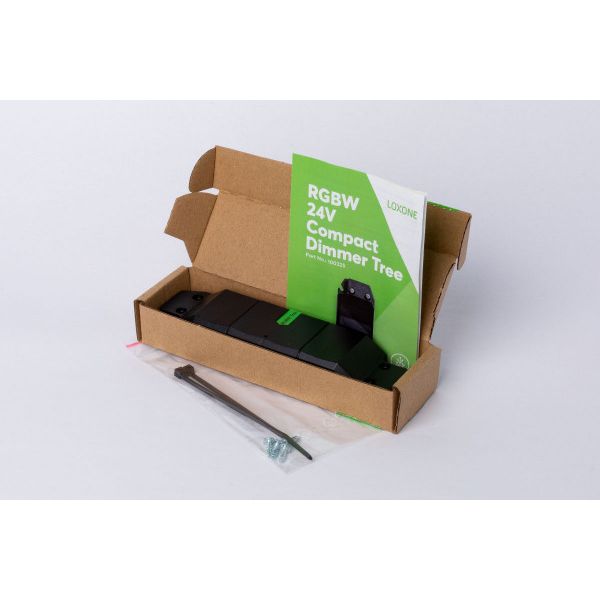

Package contents

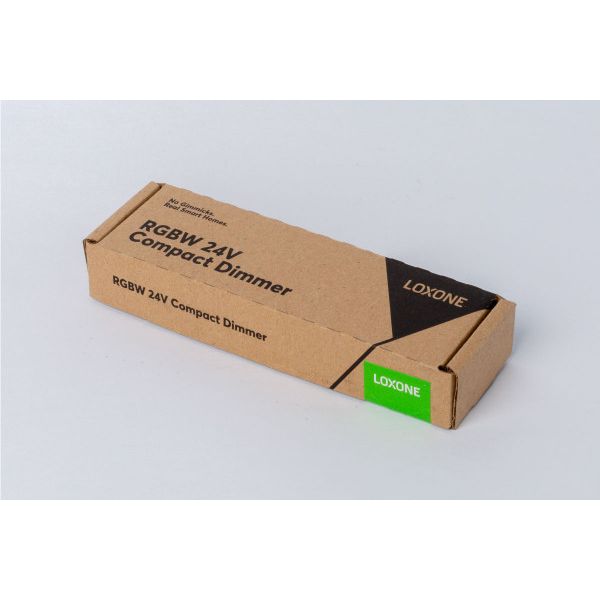

- 1x RGBW 24V Compact Dimmer
- 2x Cable tie for strain relief
| SKU | 100325 |
|---|---|
| Producător | Loxone Electronics GmbH. |
| Marcă | Loxone |
| Fișă tehnică | |
| Declarație de conformitate | |
| Certificat ETL | |
| Tariff No. | 85371091 |
