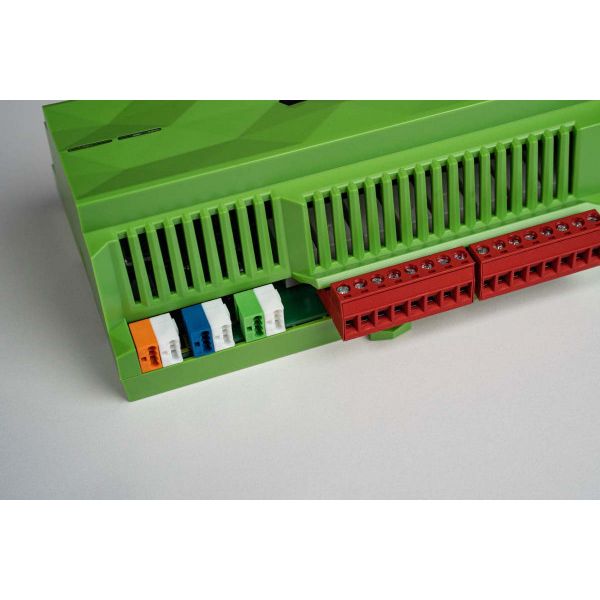

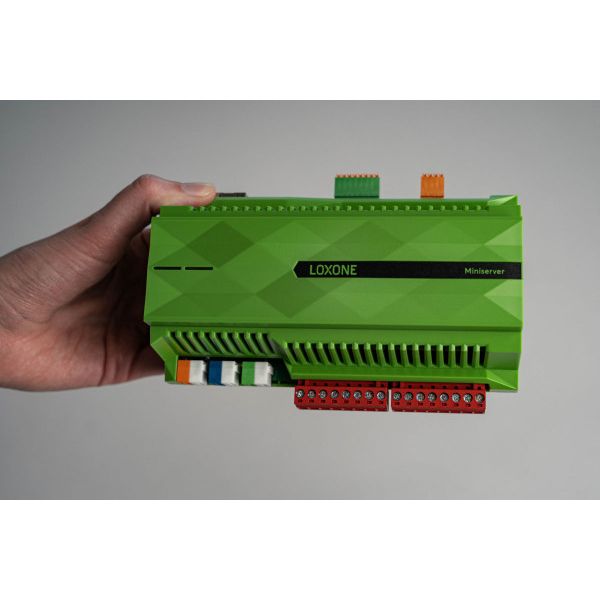

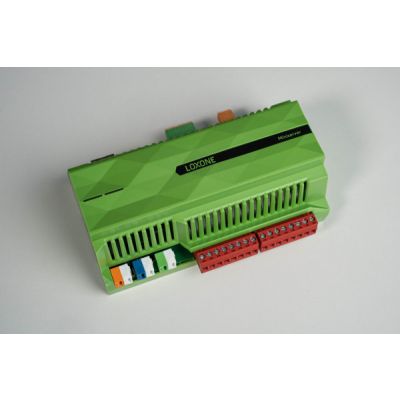

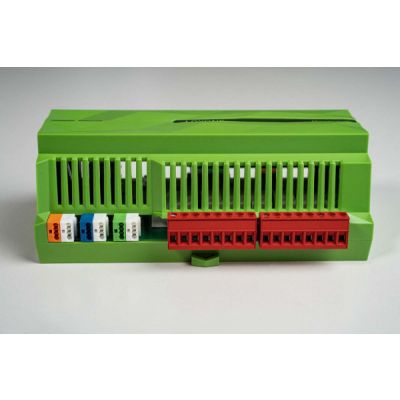

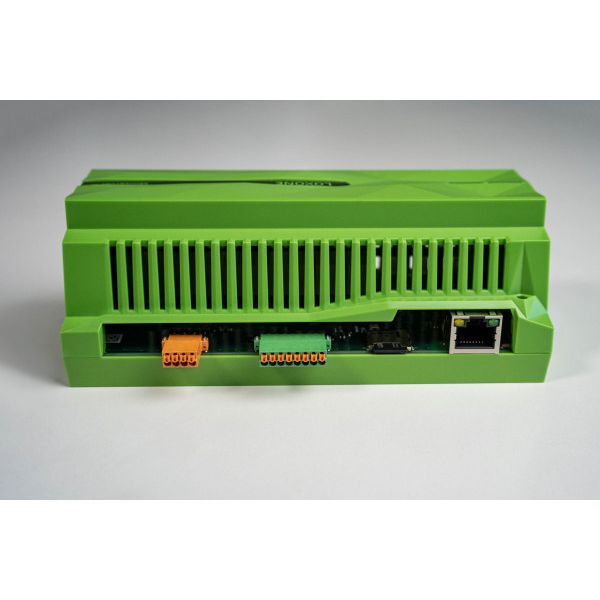

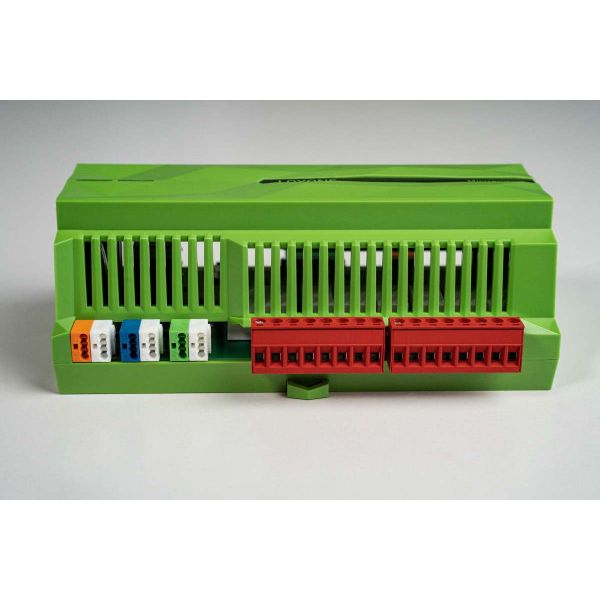

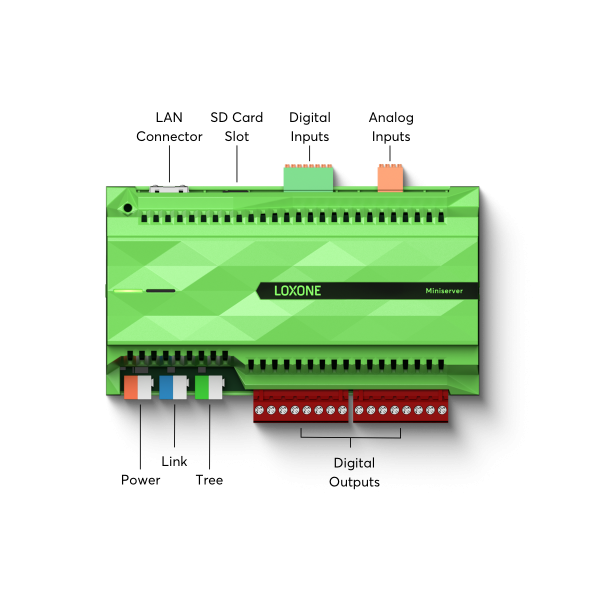

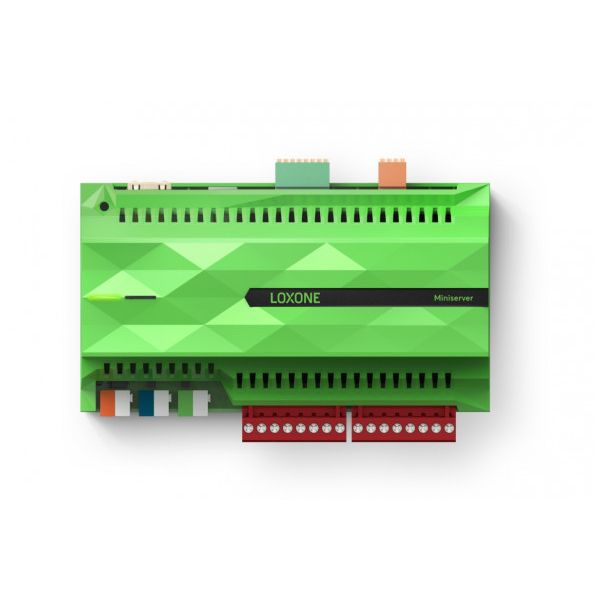

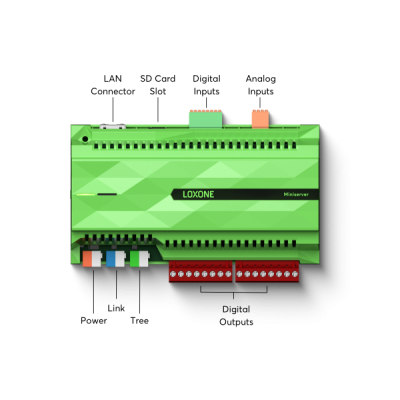

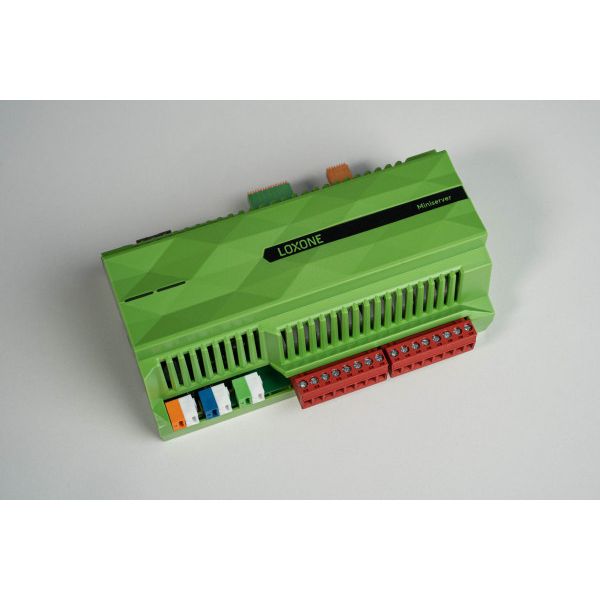

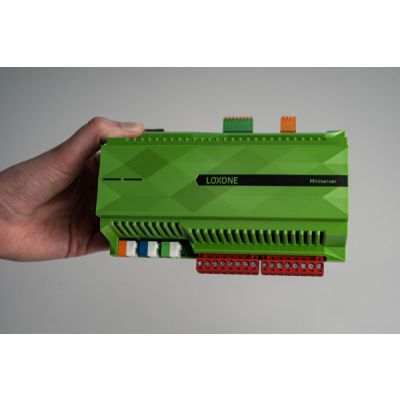

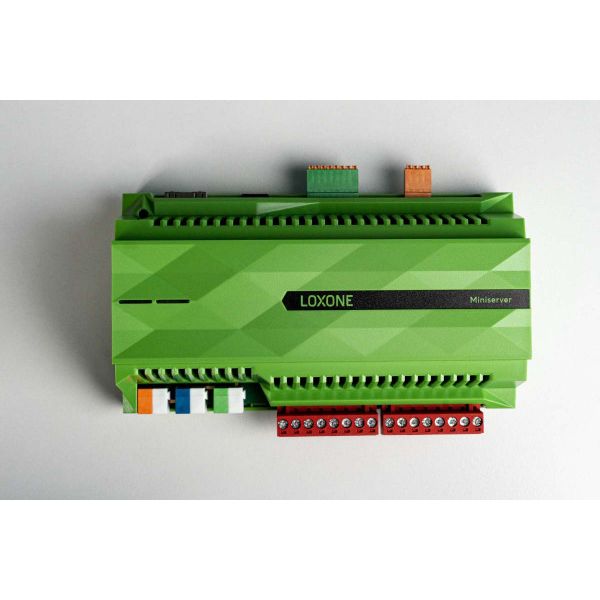

Miniserver

832,62 EUR 655,61 EUR

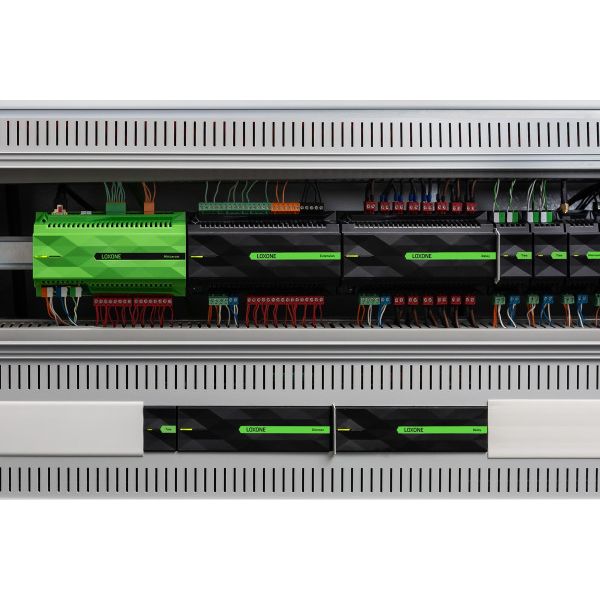

The Loxone Miniserver is the key to our building management solutions, with which all control and regulation tasks occurring in the building can be implemented, from simple shading technology to self-learning heating control. The Miniserver is located in the building's electrical distribution panel, where all control devices (conventional push buttons and switches, thermostats and temperature sensors, EIB/KNX devices, motion sensors, window/door sensors, iPod, iPad, smartphone, etc.) and controlled devices (shading, lighting, cooling, heating, music, etc.) are connected. Thanks to the structure and Hungarian language software, building control becomes comfortable, safe and energy-efficient.

- +
Disponibilitate:în stoc
SKU
100335
MarcăLoxone

30

Connection of up to 30 expansion modules

Central Hub

the central unit of automation

128

Management of up to 50 Tree devices

100%

Reliability & maintenance-free

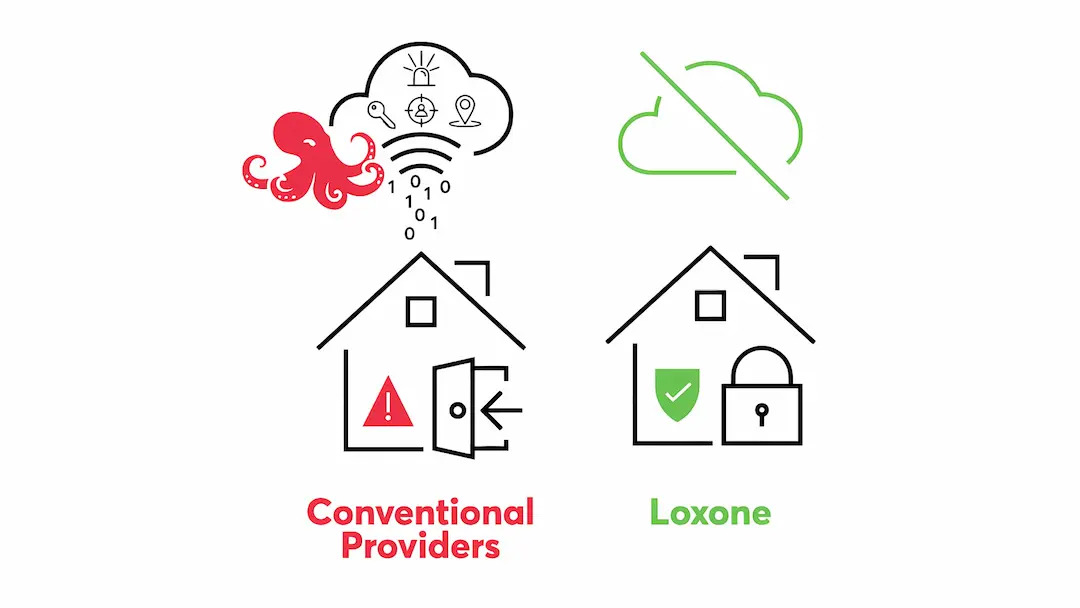

No data storage in the cloud - Automation with data security

With Loxone, your data stays where it belongs - on the Miniserver. This is the device where your data is processed. They do not go out and are not compared to the cloud. Our absolute principle applies: Your project, your data! We protect this personal right 100%.

Remote access via Remote Connect
With our Remote Connect service, specially developed for this purpose, you can connect reliably and securely to your building's Loxone system anytime and from anywhere. Without cloud and third-party devices. Thanks to true end-to-end encryption, your data is not visible on the internet.

Which Miniserver should you choose for your purposes?

  Miniserver Miniserver Compact Miniserver GO
Article number 100335 100512 100336
Installation method/location DIN rail DIN rail Anywhere

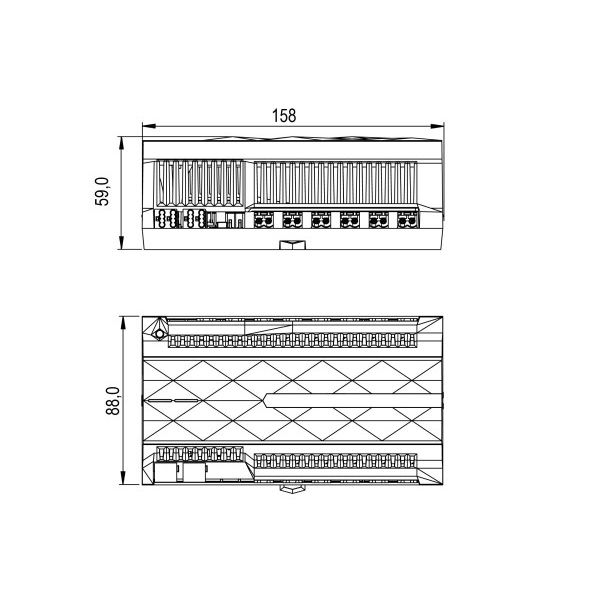

Space requirement 9 DIN units 6 DIN units 90 x 90 x 20 mm
Loxone Air expandable ✔ ✔
Loxone Tree ✔ ✔ expandable
Loxone Link ✔ ✔ ✔
Audio function expandable ✔ expandable
LAN interface ✔ ✔ ✔
Digital inputs 8 digital inputs (+expandable) 4 digital inputs (+expandable) expandable
Digital outputs 8 relay outputs (+expandable) 2 relay outputs (+expandable) expandable
Expansion module connection ✔ ✔ ✔

Data information according to the provisions of the data sharing regulation (EU Data Act)

The Loxone Miniserver is classified as a connected product under Regulation (EU) 2023/2854 (Data Act). By default, no data is transmitted to Loxone or third parties. All device data is processed and stored locally on the Miniserver. Once the user configures their own functions, all resulting data can be retrieved through the transparently documented Loxone API in a structured, machine-readable format, and can be used further if needed. Loxone does not perform automatic or hidden data collection.

Mai multe informatii
Mai multe informatii
SKU 100335
Producător Loxone Electronics GmbH.

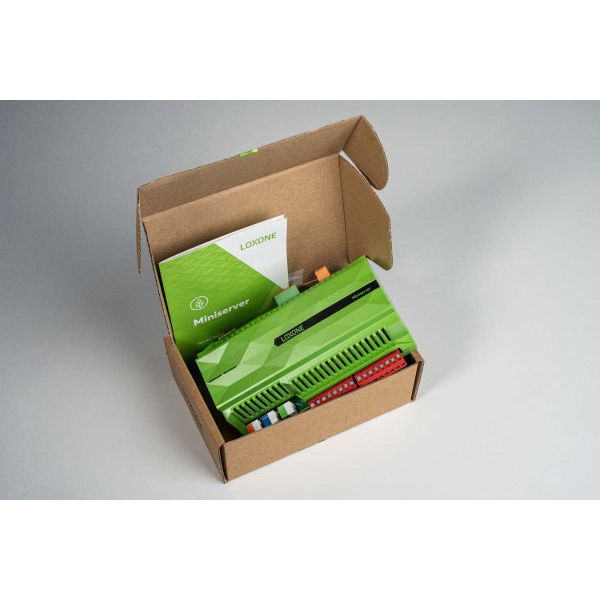

What is in the box?
  • 1x Miniserver
  • 1x 120 Ohm lezáróellenállás a Linkhez
  • 1x segédlet
  • 1x Loxone matrica
  • 1x Ipari minőségű 8GB Micro-SD memóriakártya (javasoljuk, hogy csak Loxone SD kártyákat használjon)
  • 1x Tree betűző eszköz (a tree kábel szelepmozgató motor bilincs csatlakozóba való préselésekor használatos).
Marcă Loxone
Fișă tehnică

Adatlap

Relé adatlap
Declarație de conformitate

Megfelelőségi nyilatkozat
Certificat ETL

ETL tanúsítvány
Tariff No. 85371091
