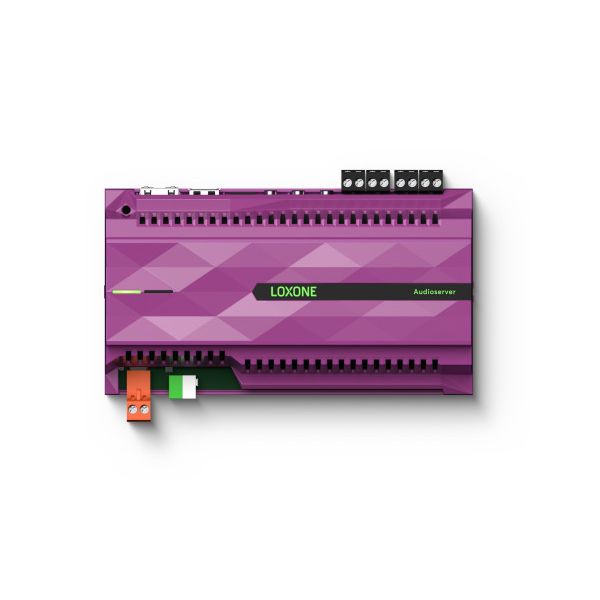

Audioserver

A comprehensive solution for every building type. The Audioserver fits perfectly into the building automation system. It can be used as an alarm, door chime, but also for distributing audio messages in the office or at home when dinner is ready.

• Excellent sound quality for all wired speakers
• Virtually unlimited expandable with Stereo Extension and additional audio servers
• Enables the creation of fixed Multiroom audio zones
• Requires no maintenance thanks to perfectly coordinated hardware and software
• Fully configurable in Loxone Config
• 4x amplified outputs
• Stereo output or stereo downmix
• Tree Turbo interface (max. 10 Stereo Extensions)
• DIN rail mounting (9 TE)
• Power supply 18VDC…26VDC
• Low 2 watt power consumption in standby mode

A comprehensive solution whether it's single-family homes, public buildings, industrial units, or special applications.

The Audioserver was developed for AV professionals and electricians, but can soon become a favorite tool for those who want to expand their expertise, or simply value excellent sound quality.

With simple DIN rail mounting and Loxone Config configuration tools, the Audioserver is the perfect solution for everyone. A powerful yet compact device that, in addition to 4 amplified outputs, offers versatile features.

Virtually unlimited expandable, making the system incredibly flexible and freely scalable. The Audioserver is therefore a practical choice regardless of project size and type.

Forget the time-consuming integration of external systems. The Audioserver can be installed in minutes as part of a comprehensive solution.

Designed for professional applications

Reliable and maintenance-free

We developed the Audioserver to perform reliably in 24-hour continuous operation throughout the building's entire lifespan. With no moving parts (e.g. fan) and only 2W power consumption (in standby mode), it is extremely energy-efficient.

Hardware and software developed at the European automation center work flawlessly together and fit perfectly into every Loxone system.

Simple DIN rail mounting

We created the Audioserver specifically for DIN rail mounting. According to Loxone standards with 24 VDC supply voltage, compact 9 unit wide housing and 4 built-in amplified outputs, it fully meets the needs of electricians and AV professionals.

*9 TE equivalent to Miniserver dimensions

Expandable and configurable in multiple ways

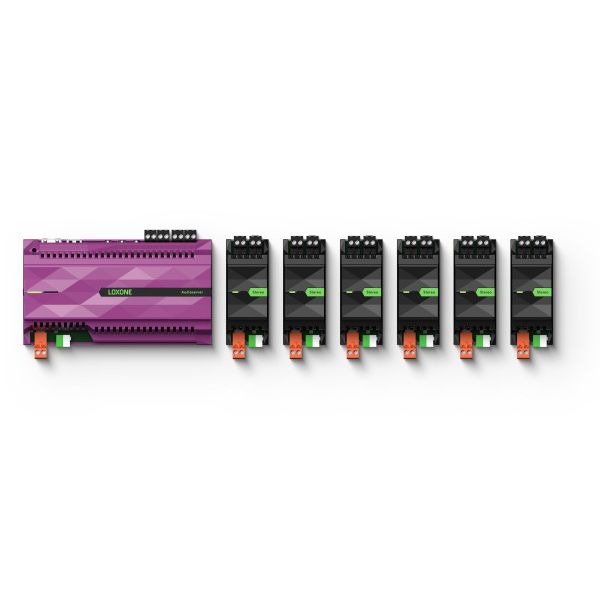

The Audioserver can be expanded with up to 10 Stereo Extension modules and thus up to 20 amplified outputs via the specially developed Tree Turbo interface. For larger installations, multiple Audioservers in the same network can be used without problems, allowing the system to be expanded as needed.

Full configuration in Loxone Config

Audio player – with the newly developed function block, you can become an audio expert in moments. Whether it's a private building, commercial unit, or special application area – with the world's most efficient automation tool, you can now realize the complete audio configuration with just a few clicks

Digital combination of amplified outputs

With simple drag-and-drop gestures, you can assign any number of amplified outputs to a given player in Loxone Config and modify them later if needed. This makes configuring spacious rooms and complex buildings particularly simple.

Fixed Audio player groups

With the fixed Audio player group, you can combine two or more Audio players in Loxone Config. This allows the same music to play on all grouped Audio players in perfect synchronization. Start individual zones separately or adjust volume individually.

Impressive sound for every speaker

The Audioserver is not just a speaker. It is the embodiment of power behind high-end, passive 4-8 Ω speakers – the combination that gives you an unparalleled experience. Whether you need soft background music or lively beats, the Audioserver always delivers.

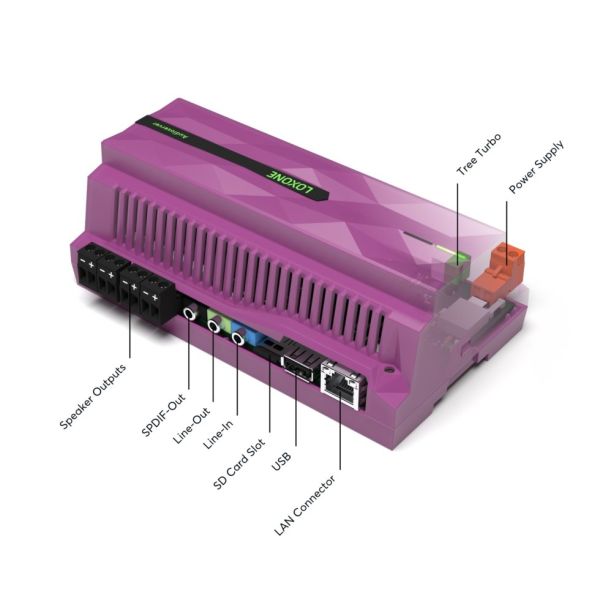

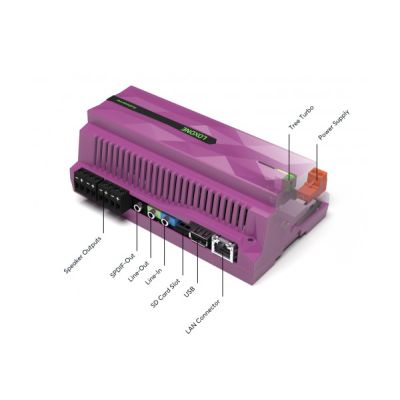

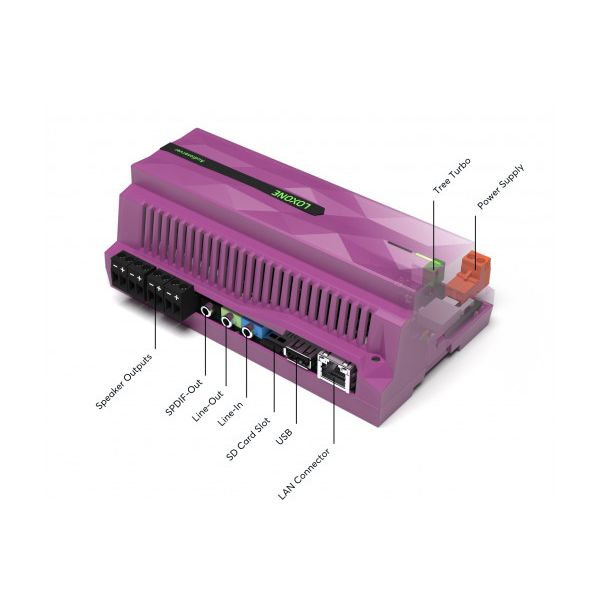

Audioserver connectors
