Nano Motor Controller Air
176,54 EUR
139,01 EUR

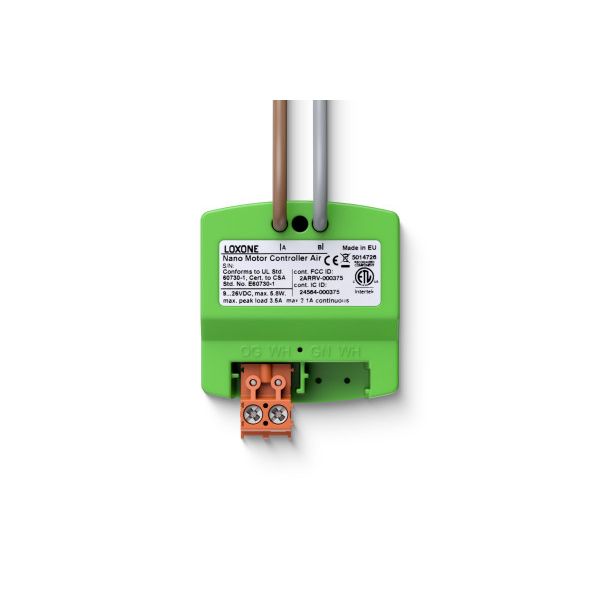

The Nano Motor Controller Air is a compact, recessed module for DC loads controlled by Loxone Air technology. The configurable outputs can be used to control the speed of DC motors or dim LED lamps. The Nano Motor Controller Air can be used in three different modes: bidirectional motor, unidirectional motor and PWM dimming. In addition, the module has current sensing and overcurrent detection.
Disponibilitate:în stoc
SKU
100472
MarcăLoxone

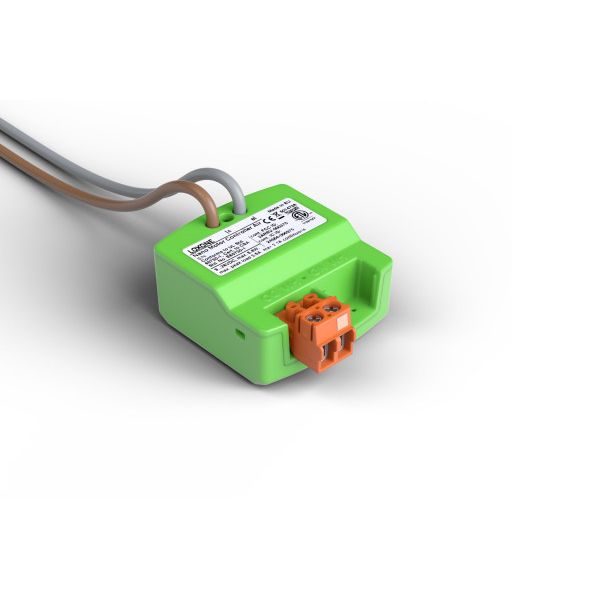

The Nano Motor Controller Air device is a compact, recessed module for DC consumers that we want to control via Loxone Air network.
The configurable outputs can be used to control DC motor speed and dim LED light sources. The Nano Motor Controller can be used in 3 different control modes:
- bidirectional motor control (1 output)
- unidirectional motor control (2 outputs possible)
- PWM dimmer (1 output)
In addition, the module has current monitoring functionality and overcurrent monitoring.
Maximum load capacity of the outputs:
- bidirectional-unidirectional motor control: 2.1A operating; 3.5A current surge (<30 seconds)
- dimmer: 2.1A
- motor speed control
- operating voltage: 9...26VDC
PWM frequency:
- bidirectional-unidirectional motor control: 1...10kHz
- PWM dimmer: 400Hz
- current monitoring: 100...3500mA
- overcurrent monitoring: 100...3500mA
- output connection cables: 150mm length
- quick integration thanks to Loxone Air technology
| SKU | 100472 |
|---|---|
| Producător | Loxone Electronics GmbH. |
| Marcă | Loxone |
| Fișă tehnică | |
| Declarație de conformitate | |
| Certificat ETL | |
| Tariff No. | 85389091 |
