Nano Motor Controller Tree
147,12 EUR
115,84 EUR
The Nano Motor Controller Tree is a compact, recessed module for DC loads controlled by Loxone Tree technology. The configurable outputs can be used to control the speed of DC motors or dim LED lamps. The Nano Motor Controller Tree can be used in three different modes: bidirectional motor, unidirectional motor and PWM dimming. In addition, the module has current sensing and overcurrent detection.
Disponibilitate:în stoc
SKU
100473
MarcăLoxone
The Nano Motor Controller Tree device is a compact, recessed module for DC consumers that we want to control via Loxone Tree line.
The configurable outputs can be used to control DC motor speed and dim LED light sources. The Nano Motor Controller can be used in 3 different control modes:

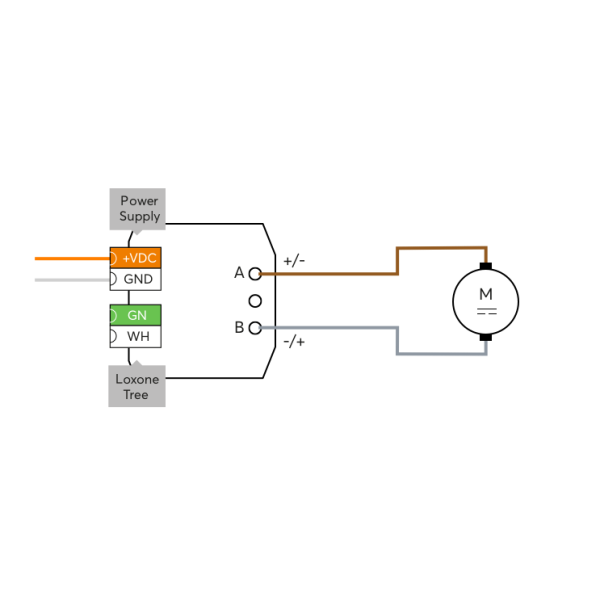

- bidirectional motor control (1 output)

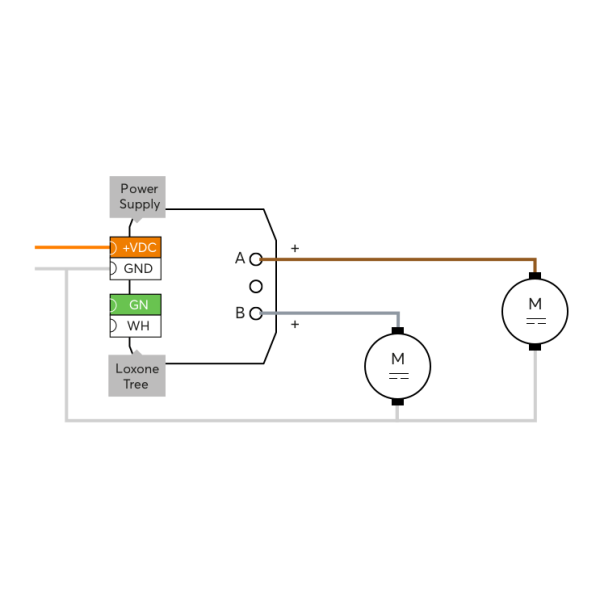

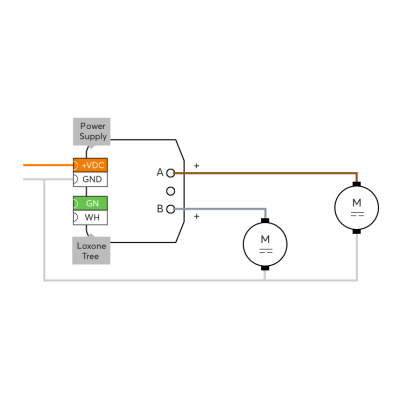

- unidirectional motor control (2 outputs possible)

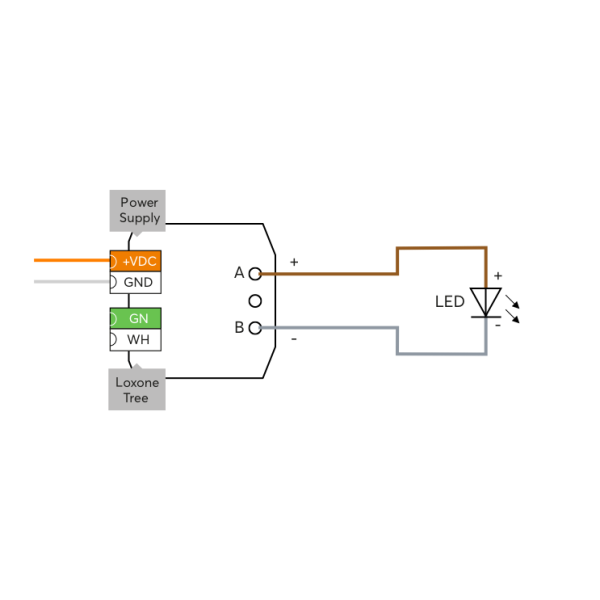

- PWM dimmer (1 output)
In addition, the module has current monitoring functionality and overcurrent monitoring.
Maximum load capacity of the outputs:
- bidirectional-unidirectional motor control: 2.1A operating; 3.5A current surge (<30 seconds)
- dimmer: 2.1A
- motor speed control
- operating voltage: 9...26VDC
PWM frequency:
- bidirectional-unidirectional motor control: 1...10kHz
- PWM dimmer: 400Hz
- current monitoring: 100...3500mA
- overcurrent monitoring: 100...3500mA

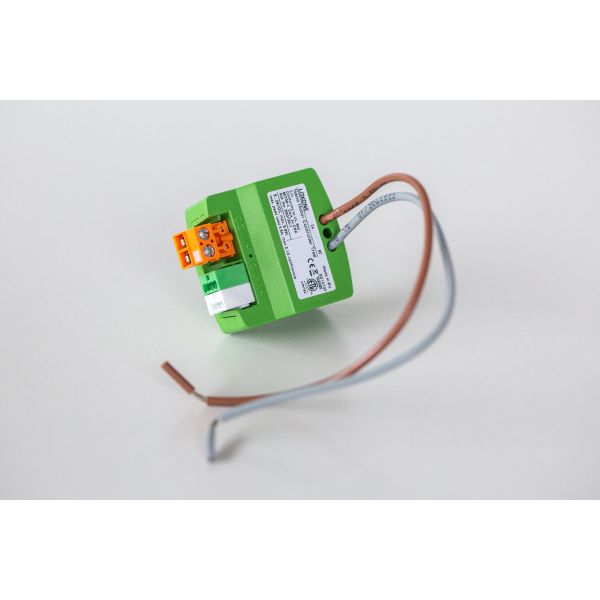

- output connection cables: 150mm length
- quick integration thanks to Loxone Tree
| SKU | 100473 |
|---|---|
| Producător | Loxone Electronics GmbH. |
| Marcă | Loxone |
| Fișă tehnică | |
| Declarație de conformitate | |
| Certificat ETL | |
| Tariff No. | 85389091 |
