Touch Pure Flex Tree Velvet White

1.456,47 RON 1.146,83 RON

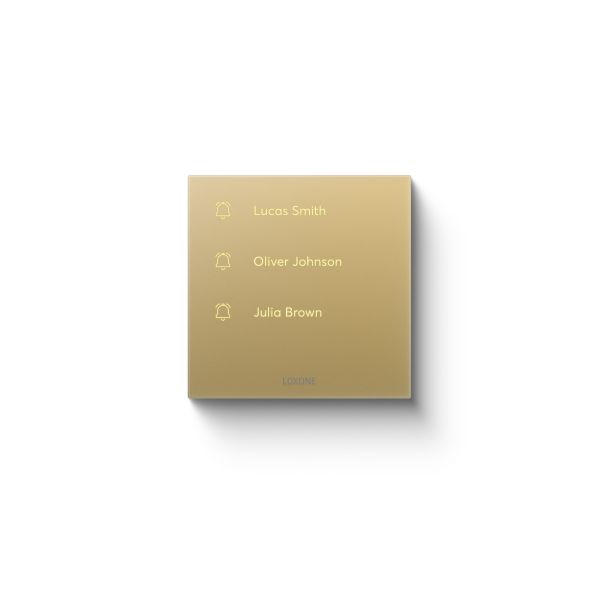

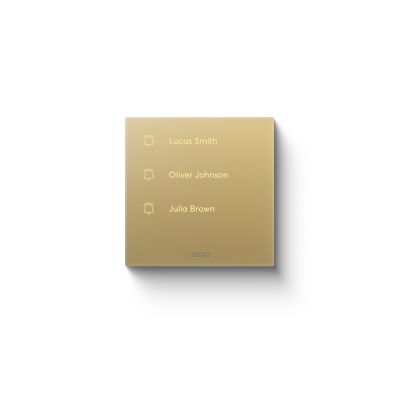

The Touch Pure Flex is your 100% customized control device with up to 12 freely definable and positionable touch points. Menus, values, texts and statuses can be displayed using the built-in LED matrix display and 3 status indicator LEDs. The built-in sensor measures temperature and relative humidity. Thanks to the built-in lighting, the Touch Pure Flex is ideal for operation in poor lighting conditions or complete darkness.

NEW: intelligent backlight that is automated according to room type and lighting conditions.

NEW: Light by Touch function: gradual activation for users sensitive to light.

The product must be designed individually on the https://configurator.loxone.com website. The ID received at the end of the design process must be entered in the configurator ID field!

The Touch Pure Flex is also available with fluorescent touch points in the Tree velvet white version. You can select this in the settings!

Since the Touch Pure Flex units are designed according to the customers' unique needs and at their request, based on point 29. § (1) c.) of Government Decree 45/2014 (II. 26.) on the detailed rules of contracts between consumers and businesses, the right of withdrawal cannot be exercised in these cases.

Maximum 7 characters

- +
Disponibilitate:în stoc
SKU
100886
MarcăLoxone

The product must be designed individually on the https://configurator.loxone.com website. The ID received at the end of the design process must be entered in the configurator ID field!

The Touch Pure Flex Tree is a 100% customizable control panel with up to 12 freely definable and positionable touch points.
With the built-in LED matrix display and 3 status indicator LEDs, menus, data, texts and status indicators can be displayed.

Individually customizable

Use the Touch Pure Flex device individually with a single mounting frame, or combine it with a door phone and/or NFC code keypad device to create an exceptionally flexible and comprehensive access control system. With the mounting frame, the products also form a stylish unit.

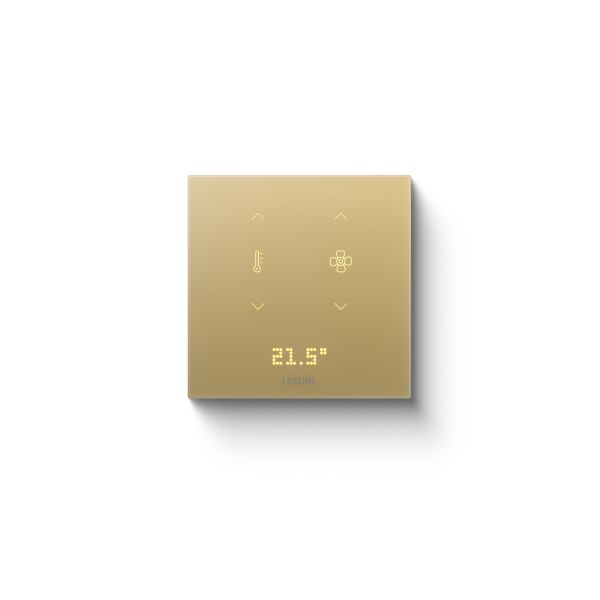

Temperature control option

The Touch Pure Flex device has a temperature sensor to support room temperature control.

Touch Pure Flex device versions comparison

  Touch Pure Flex Touch Pure Flex CO2 Touch Pure Flex IP44 Touch Pure Flex Battery
Article number 100673, 100674, 100675, 100676 100612, 100613, 100614, 100615 100608, 100609, 100610, 100611 100509, 100510
Technology Tree, 24V Air Tree, 24V Air Tree, 24V Air Air
Backlight ✔ ✔ ✔ ✖
Temperature sensor ✔ ✔ ✔ ✔
Humidity sensor ✔ ✔ ✖ ✔
CO2 sensor ✖ ✔ ✖ ✖
IP protection IP20 IP20 IP44 IP44
Mai multe informatii
SKU 100886
Producător Loxone Electronics GmbH.
Culoare Gold
Technical List

Elektromos jellemzők

Tápfeszültség: 9–28 V DC

Teljesítményfelvétel:

  • Készenléti állapotban: 0,2 W
  • Maximum: 0,9 W (100%-os fényerő mellett)
Interfész

LOXONE Tree: Kapcsolódás Miniserverhez vagy Tree Extension modulhoz

Kezelőelemek

Érintőfelület:

  • Kapacitív érintésérzékelés

  • Akár 12 vagy 14 érintési pont

Kattintás-visszajelzés: Igen

Háttérvilágítás: Igen

Mérési tartományok

Hőmérséklet:

  • -10 °C – +125 °C
  • Pontosság: ±0,5 °C

Relatív páratartalom:

  • 0–100% RH
  • Pontosság: ±2% RH (nem kondenzálódó környezetben)
Környezeti feltételek

Üzemi hőmérséklet:-20 °C – +40 °C

Páratartalom:Legfeljebb 95% relatív páratartalom (nem kondenzálódó)

Védettség:IP20

Telepítési adatok

Ajánlott szerelési magasság:135 cm

Csatlakozók

Csatlakozó típusa:DG220B

Vezeték keresztmetszete:0,28–0,8 mm² (AWG 23–18)

Blankolási hossz:5–6 mm

Hőállóság:-40 °C – +105 °C

Termékjellemzők

Szín: Arany (megközelítőleg RAL 1036)

Felület: Matt

Tömeg és méretek

Nettó tömeg: 100 g

Bruttó tömeg: 142 g

Termék mérete: 90 × 90 × 16 mm (H × Sz × M)

Csomagolási méret: 104 × 107 × 39 mm (H × Sz × M)

Szabványok és tanúsítványok
  • IEC 62368-1:2018
  • UL 62368-1:2019 Ed. 3 + R:22Oct2021
  • CSA C22.2 No. 62368-1:2019 Ed. 3 + U1
  • SASO IEC 62368-1:2020

What is in the box?
  • 1x Touch Pure Flex Tree Bársonyfehér
  • 1x Rögzítőkeret
Marcă Loxone
Fișă tehnică

Adatlap

Declarație de conformitate

Megfelelőségi nyilatkozat

Tariff No. 85365011
