Loxone Plug-In Power Supply 24V, 6.25A Type E,F

This power supply is the perfect choice for operating the Loxone Dimmer RGBW.

• Ideal power supply for LED strips

• Only 44 mm installation depth

• Inaudible, no buzzing sound

• Wide input range between 90 and 264 VAC (47-63Hz)

• 24VDC output with 150W

• Direct connection to mains thanks to the built-in power cable.

Product information

Overview

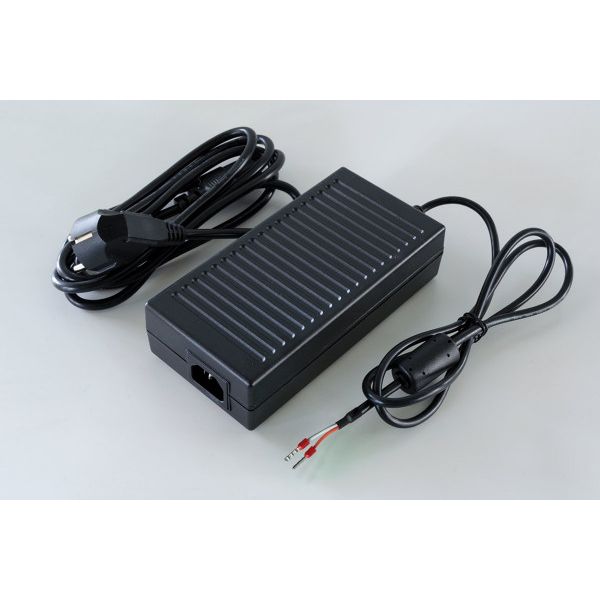

The TDK-Lambda power supply has an installation depth of 44 mm, fitting suspended ceilings and furniture. The power supply provides 24V DC, making it an ideal choice for the Loxone RGBW Dimmer. The maximum output is 6.25A. Our RGB LED strip can be powered at 10 meters distance with this power supply.

Technical data

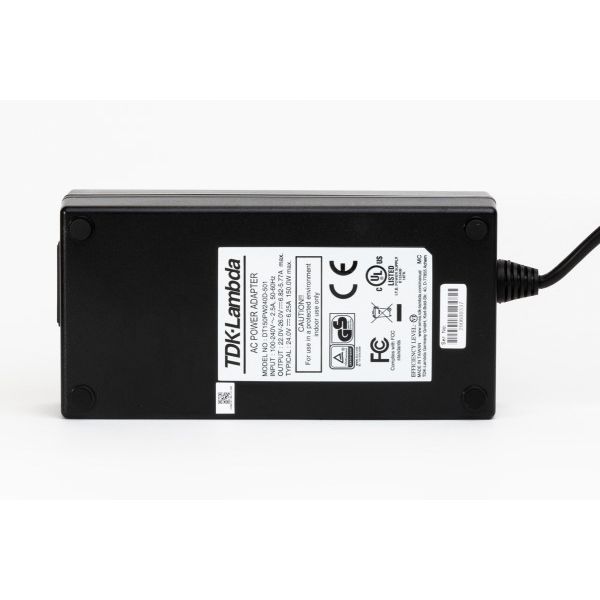

Type: TDK Lambda DT150PWD-501 Phoenix screw terminal block with strain relief

Dimensions (Height x Width x Depth): 170 x 85 x 44mm

Input voltage: 90-264VAC (47-63Hz)

Output voltage: 24V, 150W

Operating temperature: 0 - 40°C

Solid housing

Weight: 780g

What's in the box?

1x Power supply 24V (6.25A)

1x Cable
