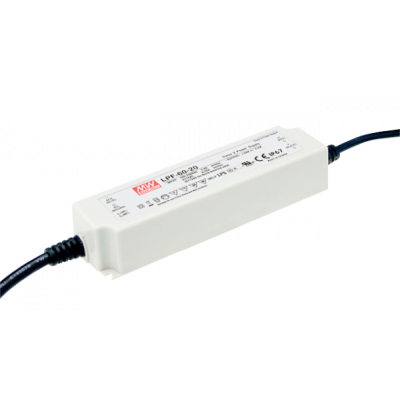

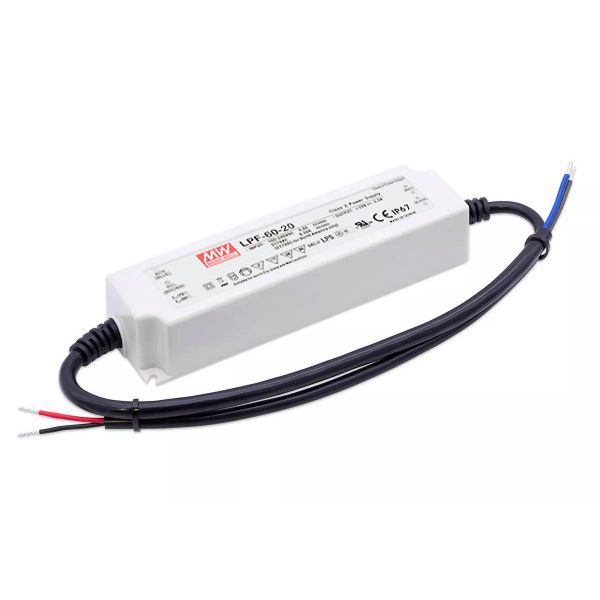

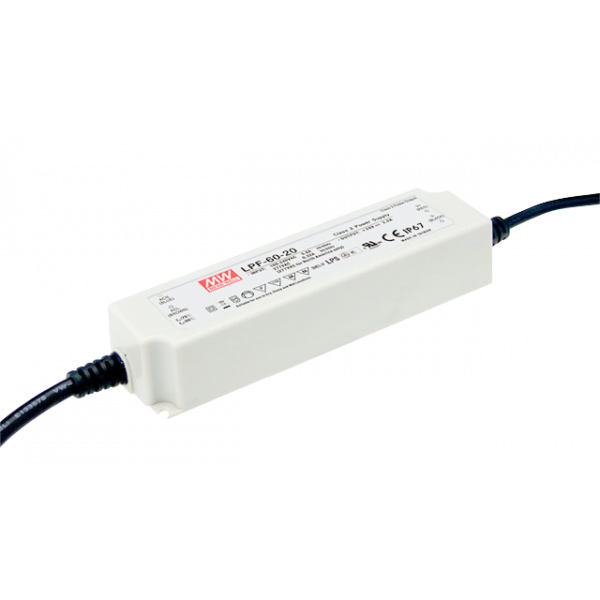

Loxone LED Switching Power Supply 24V, 2.5A

This 24V power supply with 2.5A output is ideal for the RGBW Dimmer Air and Loxone LED Spot lamp. Because it takes up little space, it can be conveniently installed in suspended ceiling cavities, ceiling openings or other locations with limited access.

Perfect use with the Loxone LED Spot lamp

Its depth is only 32mm, making it an ideal choice for installation in suspended ceiling cavities

Wide input voltage range 90-305VAC

Stable output voltage: 24VDC 2.5A

Silent operation, no buzzing sound

Wide operating temperature range: between -40 and +70°C

Suitable for outdoor use (IP67)

Ideal for powering Loxone Led Spot lamps, especially in retrofit installations where there is currently no central 24V distribution. You can power up to 15 warm white LED spot lamps or 11 RGBW Led spot lamps from one unit. Although this is a high-performance power supply, it operates quietly.

Technical data:

• Type: Mean Well LPF-60-24
• Size: 16.2mm high, 43mm wide and 32mm deep
• Input voltage: 90-305VAC (47-63Hz)
• Output voltage: 24V 2.5A
• Operating temperature: between -40 and +70°C
• Protection: IP67
• Weight: 450g

What's in the box?

• 1 x LED Power Supply 24V, 2.5A
