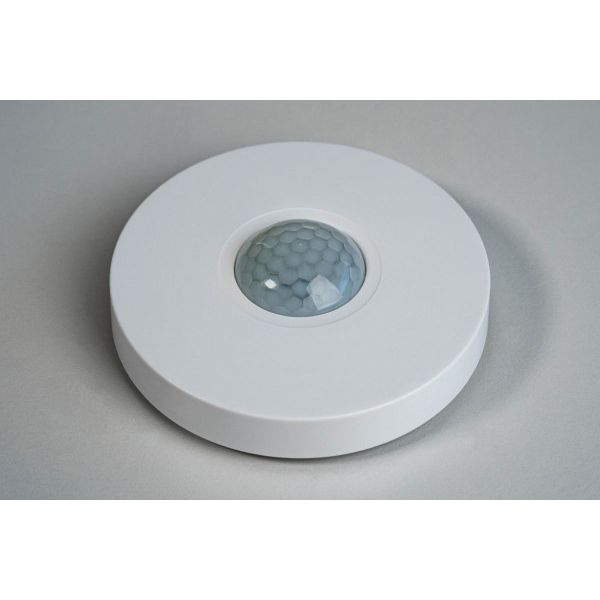

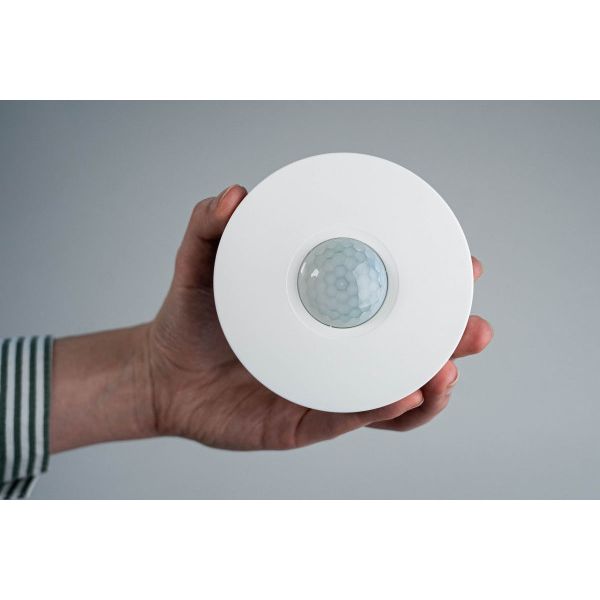

Loxone Presence Sensor Air White
139,19 EUR
109,60 EUR
The presence sensor is one of the most important sensors in every automation project. By reliably detecting presence and motion, it forms the basis for automating important functions such as lighting (including maintaining constant light levels), burglary detection, music, heating, ventilation or cooling and much more. This way you can easily solve seemingly complex tasks.
Disponibilitate:în stoc
SKU
100420
MarcăLoxone
Thanks to multisensor technology, this device forms the basis of such fundamental automation functions as lighting control, asset protection, audio system control, climate and temperature control and the list continues... Thanks to this, seemingly complex tasks can be easily solved.
- Motion and presence detection with infrared and acoustic sensors --> the acoustic sensor in the Air version only works with fixed power supply
- High detection range: field of view 360° horizontally and 110° vertically (in a circle with 8 meter diameter, at 3 meter ceiling height)
- Built-in light sensor (measurement range 0 ... 83000lx)
- Acoustic threshold values customizable according to individual needs for presence and alarm activation
- Detection area can be narrowed using stickers that can be attached to the Fresnel lens
The Presence Sensor Tree (100422, 100423) has replaced the Motion Sensor Tree (100223, 100224).
The Presence Sensor Air (100420, 100421) replaces the Motion Sensor Air (100190, 100192).
Multisensor technology: built-in infrared, acoustic and light sensor
A simple motion sensor does not detect if, for example, someone is just sitting at a table or in front of the TV without much activity. Various installation factors can also affect the effectiveness of a motion sensor, for example if it is obscured when a door is open. This is why the Presence Sensor was created - to make presence detection more accurate in every usage environment, whether in residential or public buildings. The Presence Sensor can reduce device costs in unusual usage environments where several simple motion sensors would be needed.
| Motion | Presence | Light intensity |
| High detection range: field of view 360° horizontally and 110° vertically (in a circle with 8 meter radius, up to 3 meter ceiling height). Sensitivity can be set to one of 4 different levels. | After the device detects presence based on motion, presence can be maintained by sound detected by the acoustic sensor. The acoustic detection threshold can be set using Loxone Config. | The high-quality built-in light sensor (0 ... 83000lx) provides the best solution for functions based on light intensity, such as constant light level regulation. |
A versatile acoustic sensor
With the built-in acoustic sensor, the Presence Sensor offers an even wider range of possible applications. (For the Air version only with fixed power supply.)
| Automatic timeout extension | Easy reactivation | Custom thresholds |
| When motion is first detected, the presence sensor's audio sensor automatically extends the timeout - even if it detects no motion. | If no motion or sound is detected during the set period, then - for up to 10 seconds after the period - the Presence Sensor remains on standby in case of any possible sound to extend the time limit (for example, a clap). | When a certain noise level is exceeded (this can be set in Loxone Config), the Presence Sensor's alarm output activates. With this, various functions can be activated, such as notifications or alarm triggering. |
How does acoustic detection work?
The Presence Sensor contains an acoustic sensor that detects noise and measures volume, then transmits this value to the Miniserver.
Presence detection in the AAL area
Especially when elderly or disabled people live alone, it is important that relatives or guardians know that everything is fine with them. This can be achieved, among other things, through presence detection, which is a form of unobtrusive monitoring. It can trigger an alert, for example, when a fall is detected, a change in normal behavior, or other similar emergencies.
Installation and configuration

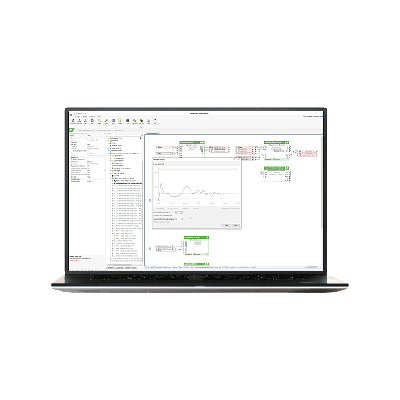

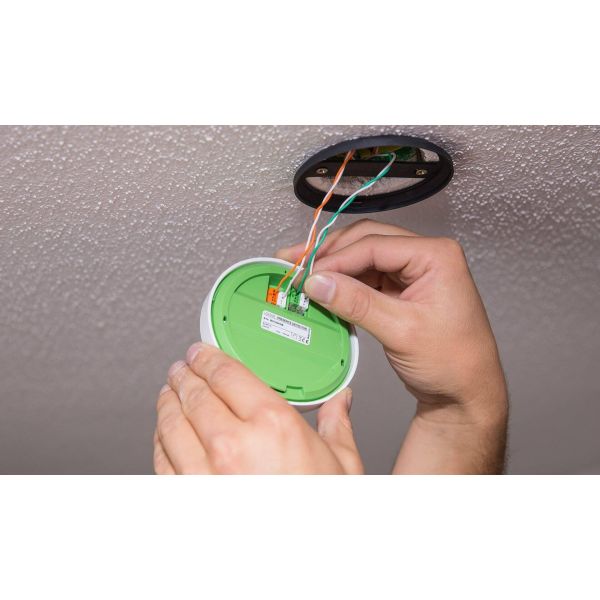

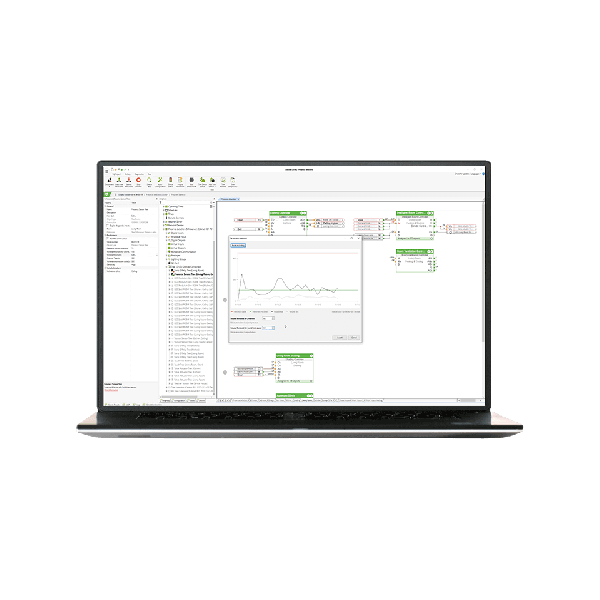

With the fiber-reinforced mounting bracket, the Presence Sensor can be easily and securely installed on either the ceiling or wall, and Loxone Tree technology enables extremely simple installation and commissioning with the help of Loxone Config.
Tree
The award-winning Tree technology is a completely free form of wiring topologies that allows you to build your cabling according to your installed system. Only a 4-core communication cable is needed to establish communication between Tree devices and conduct electricity. This minimizes wiring time and costs, as it can reduce the amount of cable needed by up to 80% compared to other similar automation systems.
Air

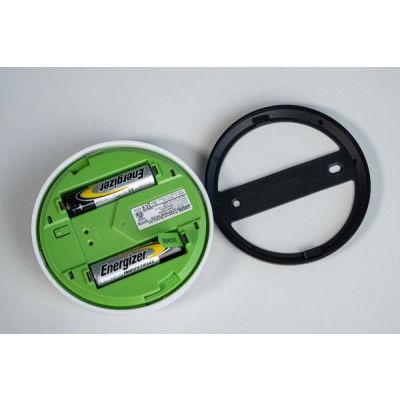

The Presence Sensor Air connects wirelessly to the Loxone Air radio system. Thanks to energy-efficient Air technology, the Presence Sensor Air has a lifespan of approximately 2 years and can be powered by 24 VDC or operated with batteries.

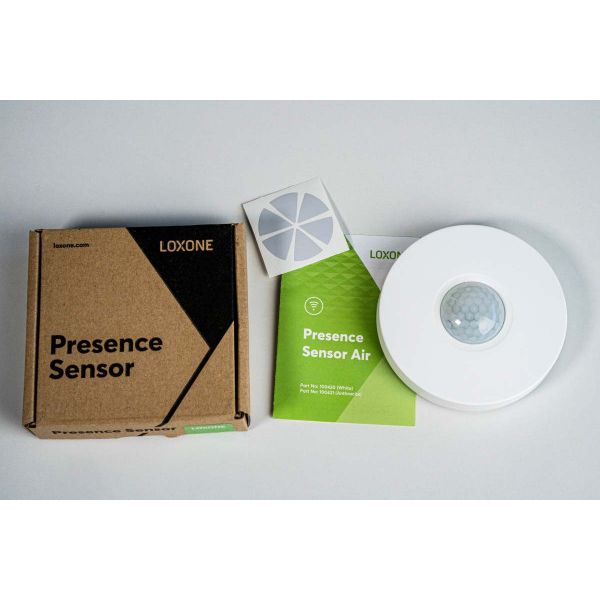

Package contents:
1x Presence Sensor (white/anthracite)

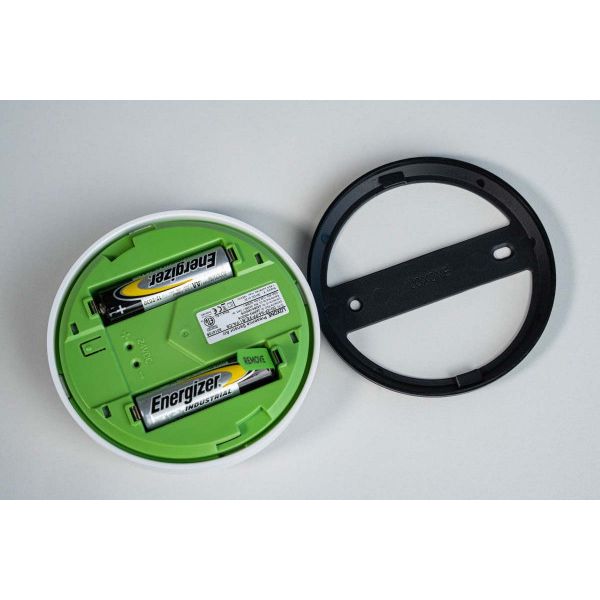

1x fiber-reinforced mounting bracket

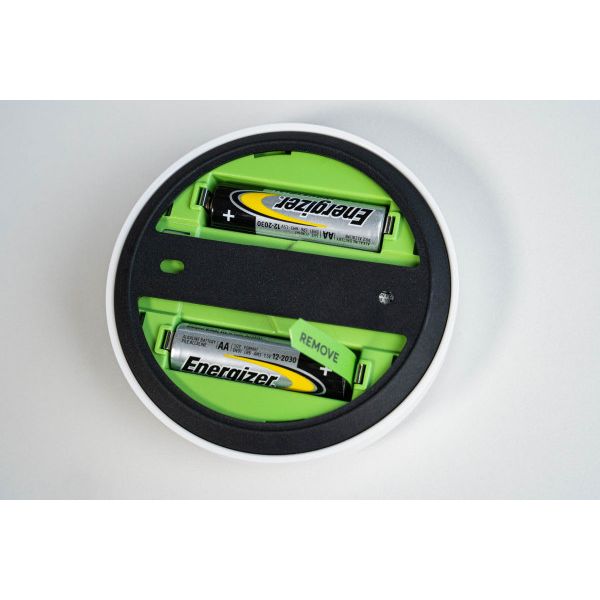

2x AA batteries
Stickers for the Fresnel lens to moderate the detection range
| SKU | 100420 |
|---|---|
| Producător | Loxone Electronics GmbH. |
| Culoare | White |
| Marcă | Loxone |
| Fișă tehnică | |
| Declarație de conformitate | |
| Certificat ETL | |
| Tariff No. | 85365080 |
