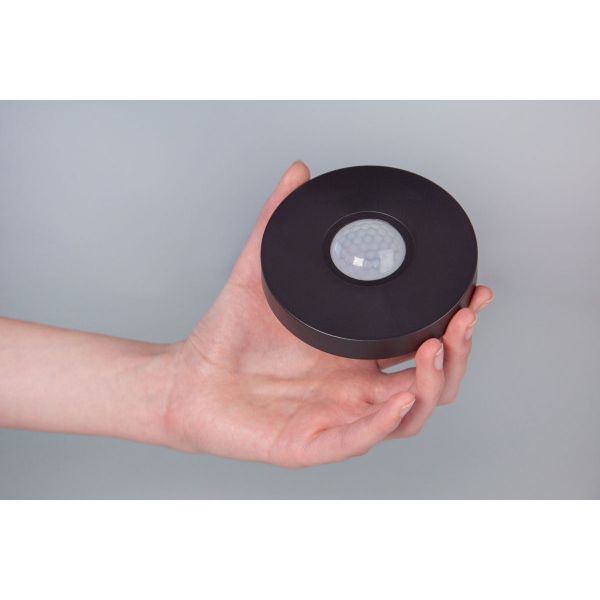

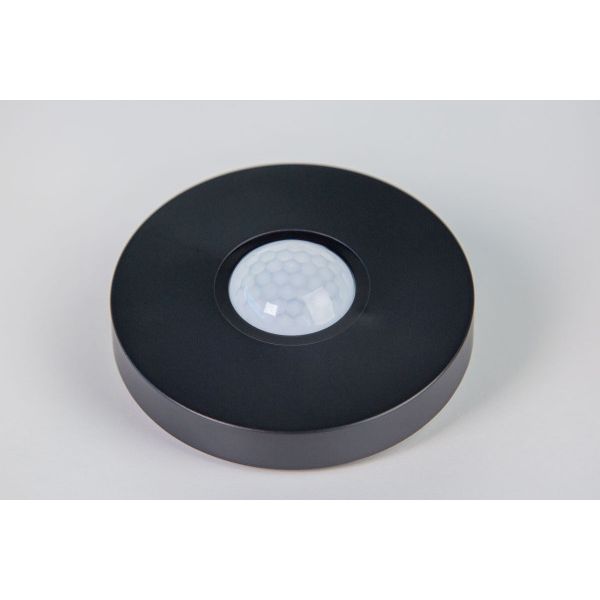

Loxone Presence Sensor Tree Anthracite
124,55 EUR
98,07 EUR
The presence sensor is one of the most important sensors in every automation project. By reliably detecting presence and motion, it forms the basis for automating important functions such as lighting (including maintaining constant light levels), burglary detection, music, heating, ventilation or cooling and much more. This way you can easily solve seemingly complex tasks.
Disponibilitate:în stoc
SKU
100423
MarcăLoxone
Thanks to multisensor technology, this device forms the basis of such fundamental automation functions as lighting control (including constant light level regulation), asset protection, audio system control, climate and temperature control and the list continues... Thanks to this, seemingly complex tasks can be easily solved.
- Motion and presence detection with infrared and acoustic sensors
- High detection range: field of view 360° horizontally and 110° vertically (in a circle with 8 meter diameter, up to 3 meter ceiling height)
- Built-in light sensor (measurement range 0 ... 83000lx)
- Acoustic threshold values customizable according to individual needs for presence detection or alarm activation
- Easy moderation of detection range using stickers that can be attached to the Fresnel lens
The Tree Motion Sensor is discontinued and replaced by the Tree Presence Sensor:
100422 Presence Sensor Tree, white --> replaces the 100223 Motion Sensor Tree, white version
100423 Presence Sensor Tree, anthracite --> replaces the 100224 Motion Sensor Tree, anthracite
Multisensor technology: built-in infrared, acoustic and light sensor
A simple motion sensor does not detect if, for example, someone is just sitting at a table or in front of the TV without much activity. Various installation factors can also affect the effectiveness of a motion sensor, for example if it is obscured when a door is open. This is why the Presence Sensor Tree was created - to make presence detection more accurate in every usage environment, whether in residential or public buildings. The Presence Sensor can reduce device costs in unusual usage environments where several simple motion sensors would be needed.
| Motion | Presence | Light intensity |
| High detection range: field of view 360° horizontally and 110° vertically (in a circle with 8 meter diameter, 3 meter ceiling height). Sensitivity can be set to one of 4 different levels. | After the device detects presence based on motion, the presence factor can be further enhanced by sound detected by the acoustic sensor. The acoustic detection threshold can be set using Loxone Config. | The high-quality built-in light sensor (0 ... 83000lx) provides the best solution for functions based on light intensity, such as constant light level regulation or lighting adapted to natural light conditions. |
A versatile acoustic sensor
With the built-in acoustic sensor, the Presence Sensor Tree offers an even wider range of possible applications.
| Automatic timeout extension | Intuitive reactivation | Custom thresholds |
| When motion is first detected, the Presence Sensor's audio sensor automatically extends the timeout - even if it detects no motion. | If no motion or sound is detected during the set period, then - for up to 10 seconds after the period - the presence sensor remains on standby in case of any possible sound to extend the time limit (for example, a clap). | When a certain noise level is exceeded (this can be set in Loxone Config), the Presence Sensor's alarm output activates. With this, various functions can be activated, such as notifications or alarm triggering. |
| SKU | 100423 |
|---|---|
| Producător | Loxone Electronics GmbH. |
| Culoare | Anthracite |
| Marcă | Loxone |
| Fișă tehnică | |
| Declarație de conformitate | |
| Certificat ETL | |
| Tariff No. | 85365080 |
