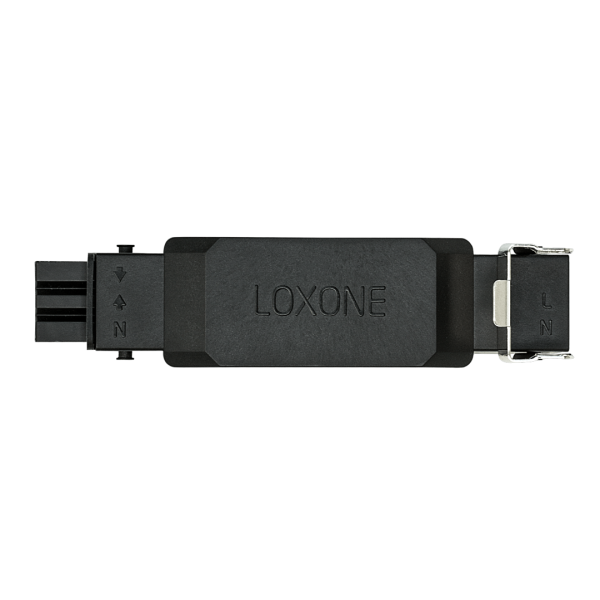

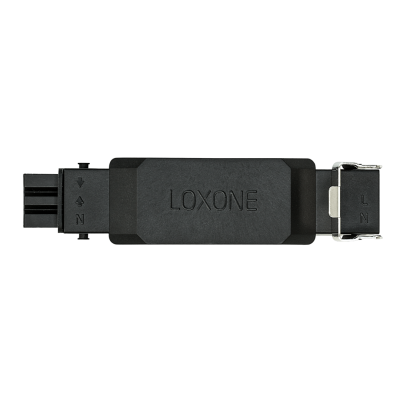

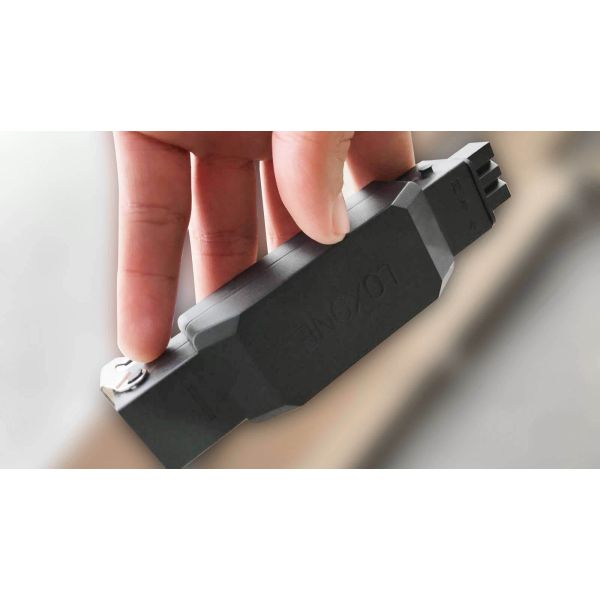

Loxone Shading Actuator Air
144,89 EUR
114,09 EUR
Whether you use electric curtains, blinds or sun shades, the new Shading Actuator Air allows you to integrate shading into your Loxone automated home in a few simple steps. Suitable for blinds, curtains, shutters and sun shades. With the new Shading Actuator Air, you can integrate virtually any type of shading.
If Hirschmann connectors are not included with your shading motor connections, you will need the connector and retaining tab for the output side, which you can find among the related products (STAS-3N, STAK-3N, STASI-3).
Disponibilitate:în stoc
SKU
100290
MarcăLoxone
Whether you use electric curtains, blinds or sun shades, the new Loxone shading controller AIR allows you to integrate them into your smart home system in a few simple steps.
- thanks to Loxone Air technology, cabling is a thing of the past
- quick installation

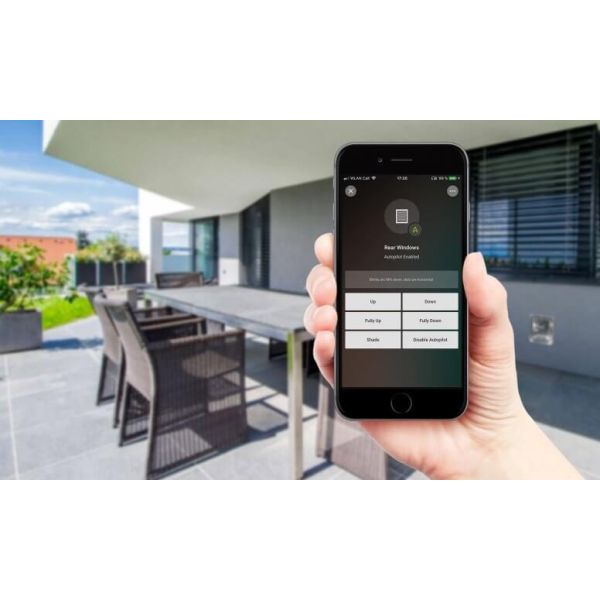

- fully automatic control over the blinds

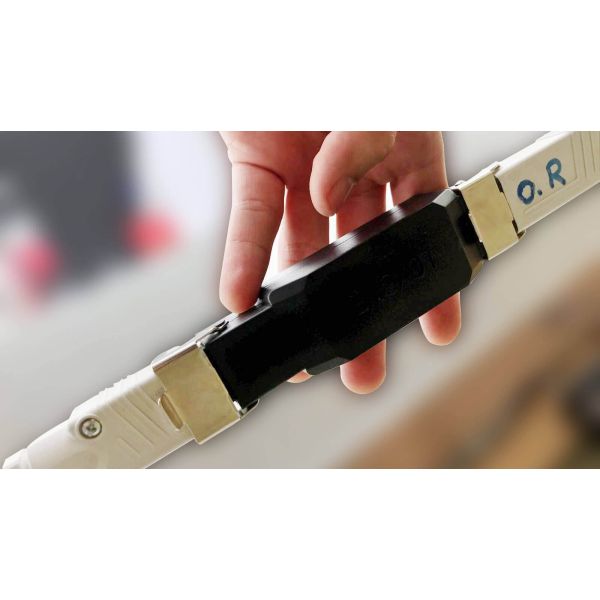

- standardized Hirschmann connector (STAS 3, STAK 3)
- fully automatic end position detection and calibration
Technical specifications
- power supply: 110-230V~, 50/60Hz
- digital output: 2 digital outputs 5A at cosφ=1
- frequency: 868MHz (SRD Band Europe), 915MHz (ISM Band Region 2)
- consumption: typically 0.33W
- operating temperature: -30 – 50°C
- protection rating: IP54
- connection: Hirschmann STAK3, STAS3
- minimum load: 90W (during automatic end position detection)
- technology: Loxone Air Technology
| SKU | 100290 |
|---|---|
| Producător | Loxone Electronics GmbH. |
| Marcă | Loxone |
| Fișă tehnică | |
| Declarație de conformitate | |
| Certificat ETL | |
| Tariff No. | 85269200 |
