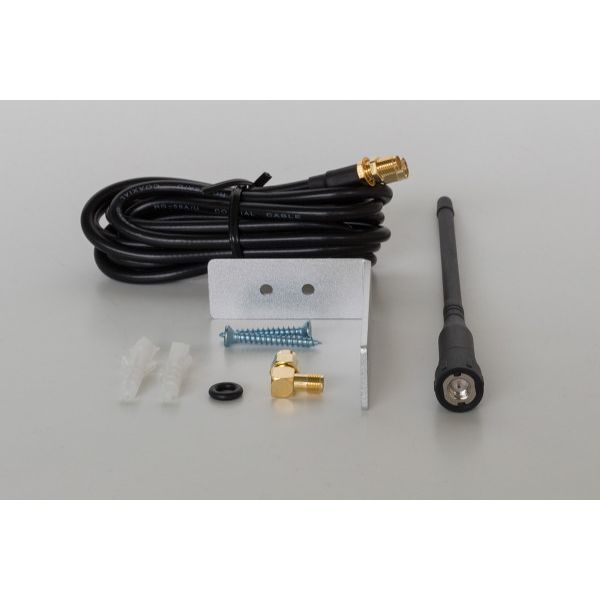

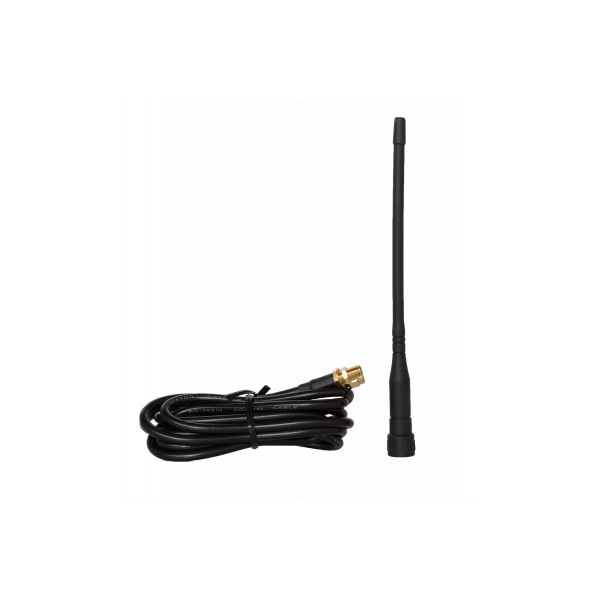

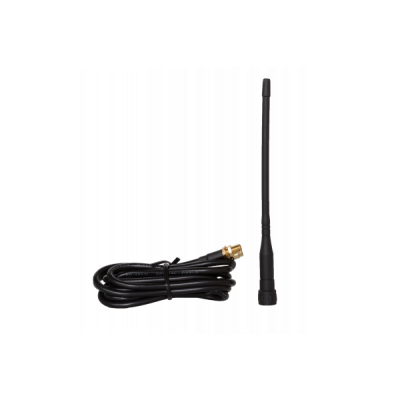

Loxone SMA Rod Antenna 4dBi 868 MHz

The SMA antenna cable is incredibly simple and practical to use. Connect it, for example, to the antenna of your Multi Extension Air or Air Base extension module in a outbuilding, thus ensuring excellent signal strength that is crucial in communication between devices.

Technical data:

• Frequency: 868 MHz
• Cable length: 2 m
• Operating temperature: -40°C to +80°C
• Protection: IP50 (IEC 60529)
• Impedance: 50 Ohm
• Maximum power: 20W
• Antenna length: 160 mm
• Polarization: vertical
