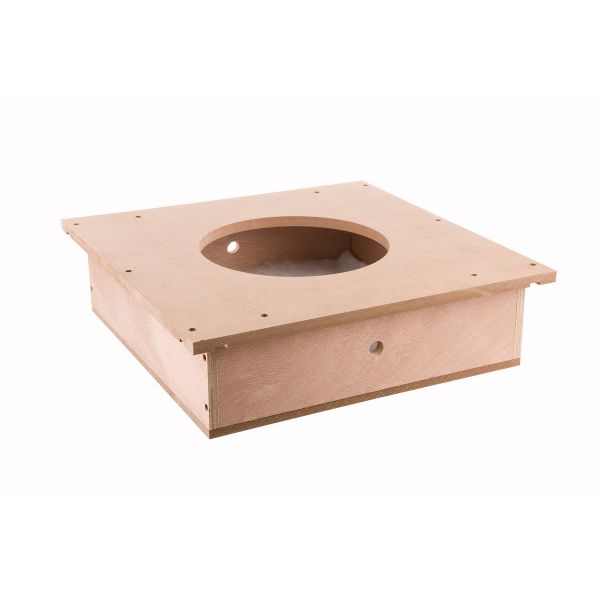

Backbox for 7" Install Speaker

The Loxone speaker installation box is the ideal choice for installing Loxone speakers into recessed or wood-beamed ceilings.

• For ceiling or wall suspension
• 204 mm diameter, fits the Loxone speaker
• Low installation depth (108 mm)
• Excellent resonance (9.1 liters)
• Pre-drilled holes for easier installation

Overview

Don't forget about your sound system when building. Make sure your home is filled with pleasant sounds, install the Loxone installation box!

Full sound: the 9.1 liter Loxone speaker installation box provides optimal sound quality from the speakers.

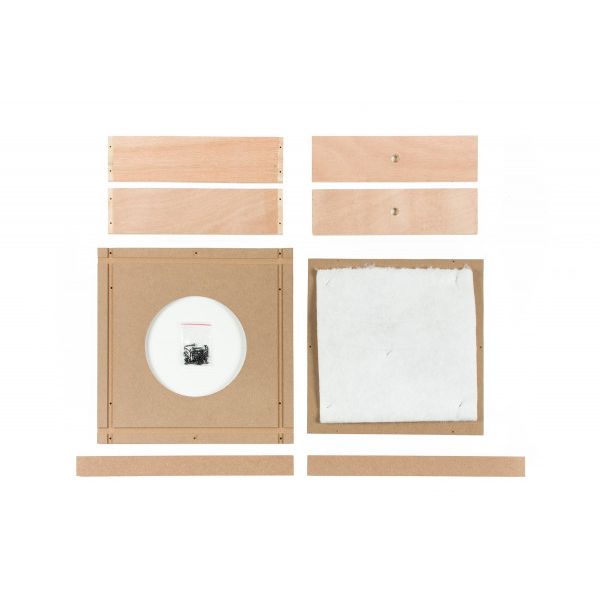

High-quality material: the installation box is made of quality MDF and plywood

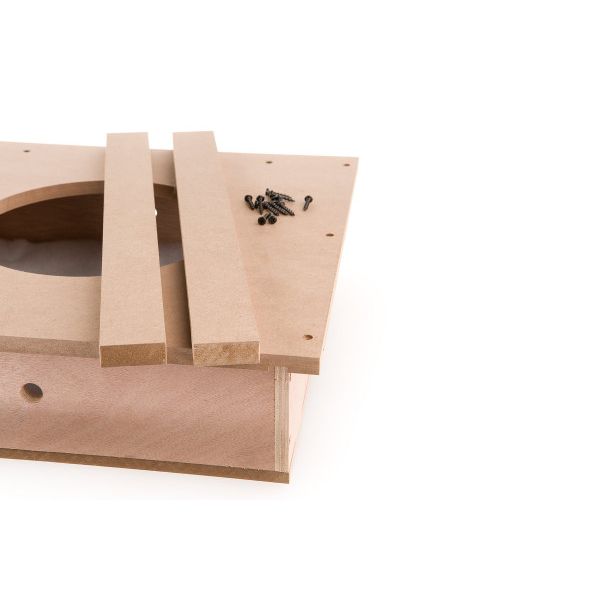

Easy installation: pre-drilled holes and slots make suspension easy and fast

For suspended ceilings and wood-beamed ceilings (does not fit conventional ceilings)

Important: Don't forget to run an empty cable through the Loxone installation box!

Technical data

• Ø outlet: 204 mm (approx.)
• Installation depth: 108 mm
• Cable inlet: 2 x 15 mm
• Size: 390 x 390 mm
• Material: MDF / plywood
