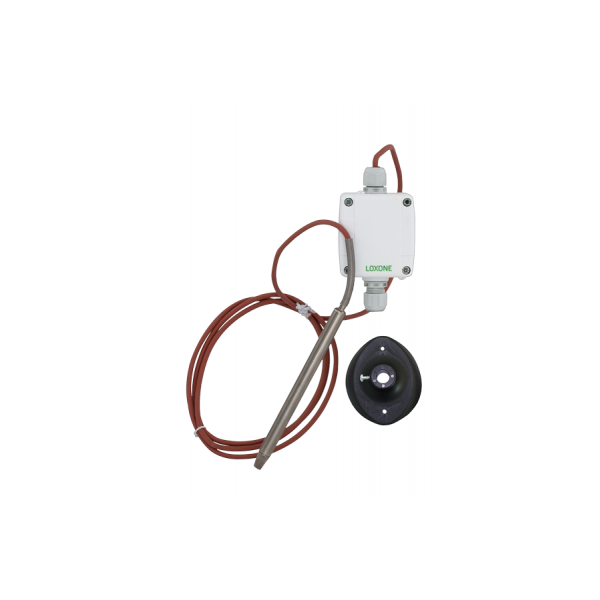

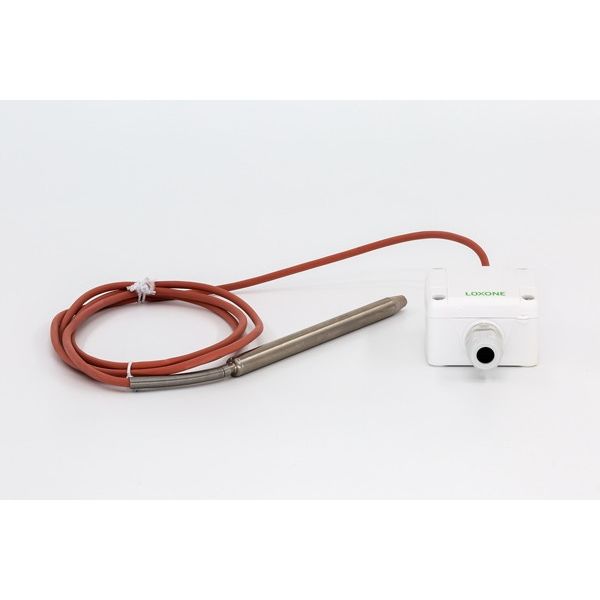

Loxone Temperature & Humidity Sensor Sauna

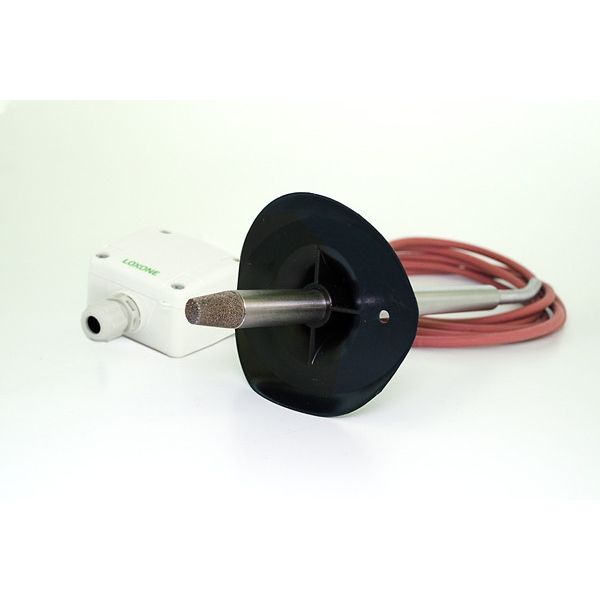

The Loxone Sauna temperature and humidity sensor is excellent for measuring temperature and humidity in saunas and other spaces. Its heat resistance allows us to use it long-term between -30°C and +120°C. The measuring head is made of stainless steel with a nickeled, sintered bronze filter.

The sensor is factory equipped with a 0-10V output signal, so it can be connected to any standard 0-10V device.

Suitable for use with the Loxone Miniserver or expansion module.

Technical data

Humidity measurement:

• Analog output: 0-10V
• Measurement range: 0 to 100% RH
• Accuracy: +/- 2% RH (25%-90% RH)
• Sensor: combined sensor (temperature and humidity)

Temperature measurement:

• Analog output: 0-10V
• Measurement range: -30°C to +120°C
• Accuracy: +/- 0.5°C

General information:

• CE declaration of conformity: EMC 89/336/EEC
• Technical Standard: EN 61000-6-3:2001
• Housing: Polyamide GK30
• Connection: 1.5 mm²
• Connection: 2000 mm (silicone)
• Protective filter: bronze alloy
• Operating voltage: 15-36 VDC / 24 VAC
• Overvoltage protection: varistor

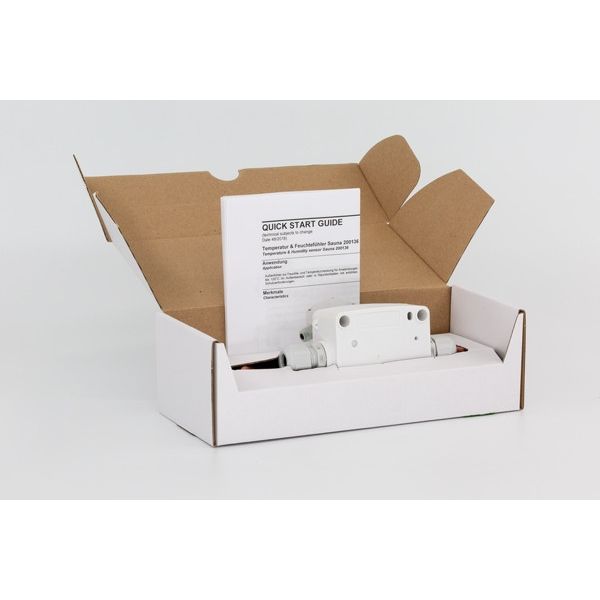

German and English language technical description
