Loxone 1-Wire Sleeve Temperature Sensor

The Loxone 1-wire temperature sensor for liquids is a perfect complement to the Loxone 1-Wire Extension. This thermometer sensor is suitable for measuring liquid temperatures and can also be used as a contact thermometer with the included clamping bracket.

 Recommended applications:

• Precise temperature sensing
• Connected to 1-wire Extension, suitable for collecting temperature data
• Compatible with all 1-Wire devices

Technical data

• Power supply is provided through the data cable, enabling two-wire connection

• Accuracy: +/- 0.5°C (between -10 and +85°C)

• Measurement range: -55 ... +125°C

• The cable resists temperatures between -50°C and +180°C, made of high-quality PVC.

• The sensor resists temperatures between -50°C and +125°C.

Package contents:

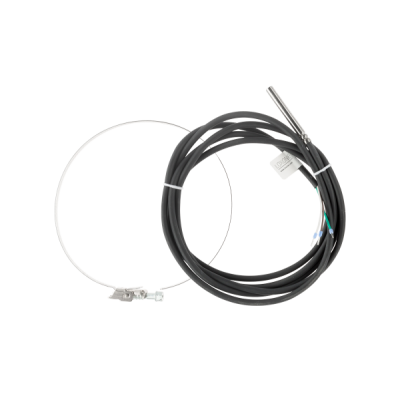

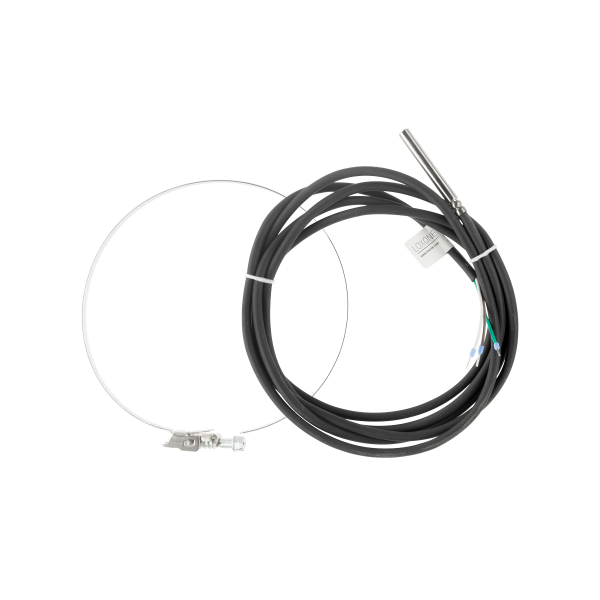

• 1 x 1-wire temperature probe head, 2.5m cable

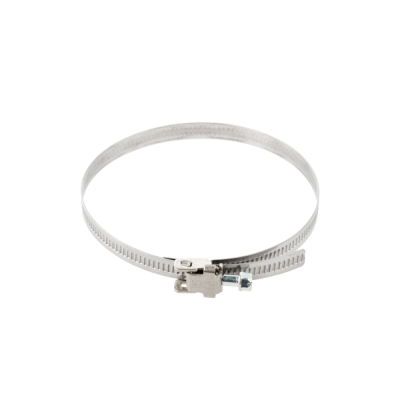

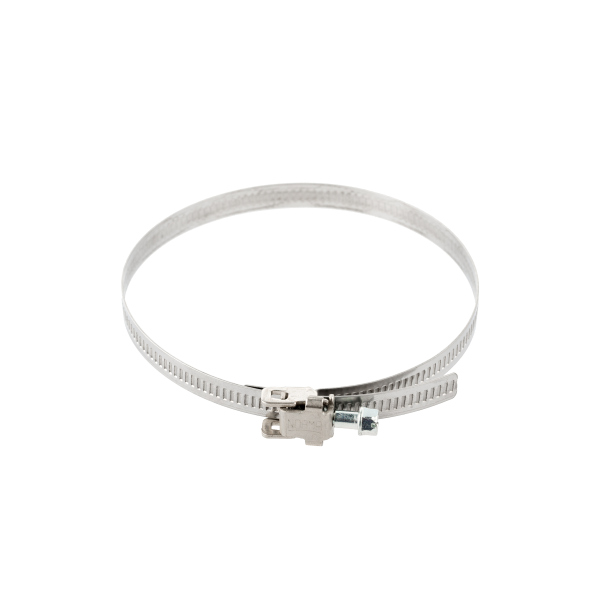

• 1 x clamping bracket
