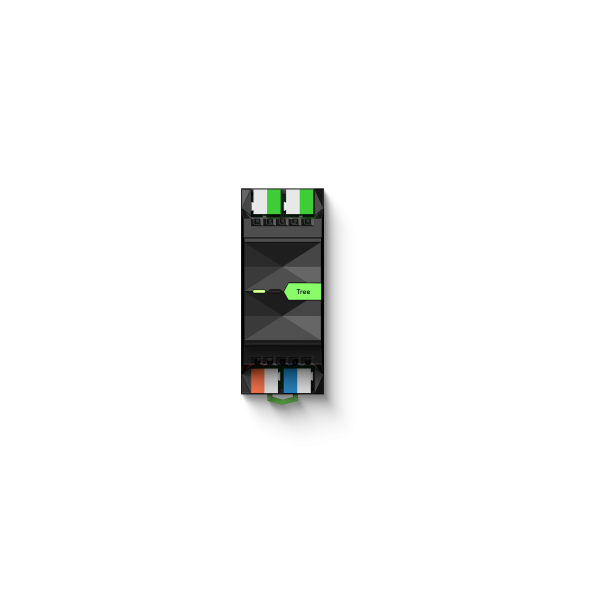

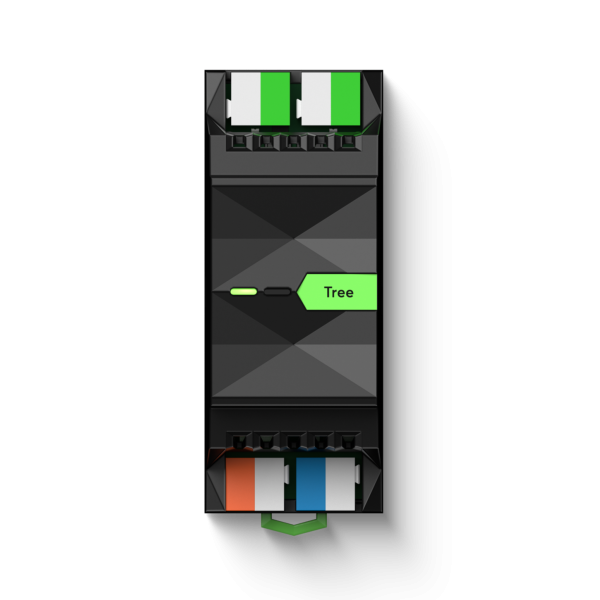

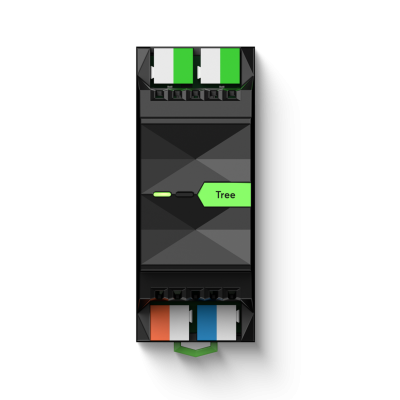

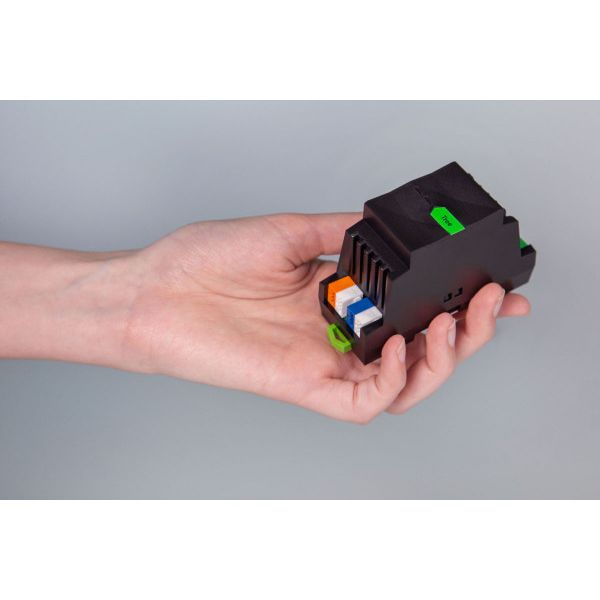

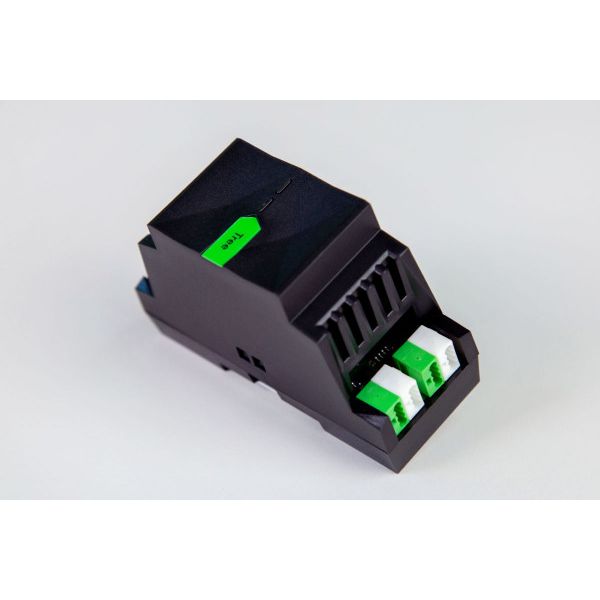

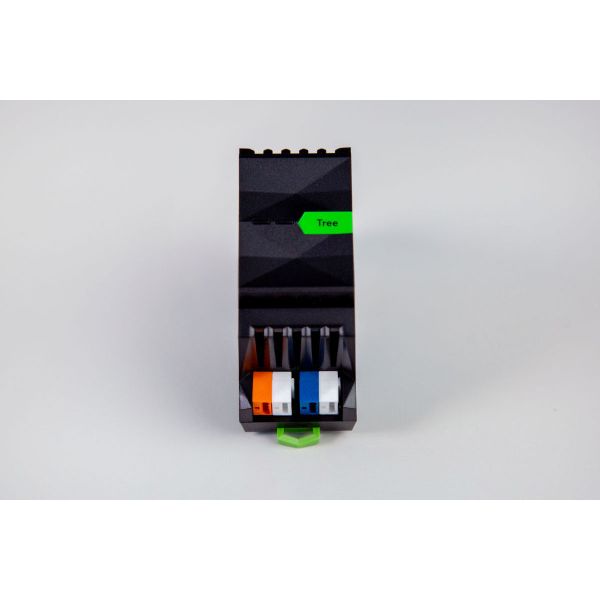

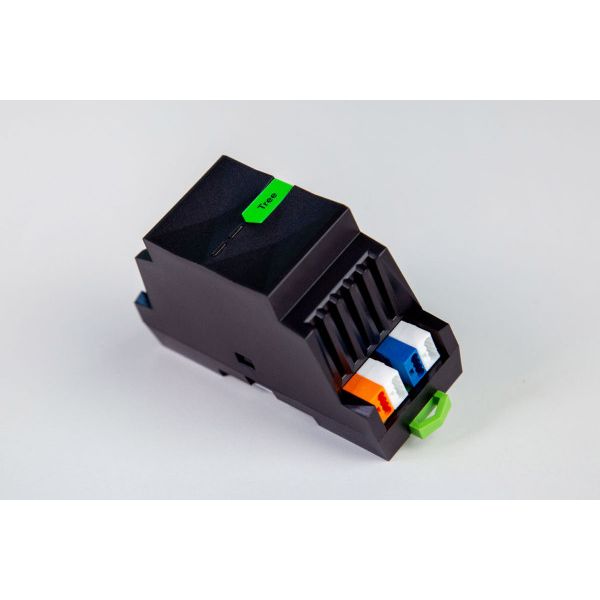

Tree Extension

The Tree extension device is the foundation of Loxone Tree technology and device integration in smart buildings.

• Can reduce cabling by up to 80%
• Can be commissioned in record time
• Fully compatible with other Loxone devices
• Complete freedom in wiring
• Has 2 branches, with up to 50 Tree-compatible devices connectable per branch
• Free software updates
• Excellent price-to-performance ratio

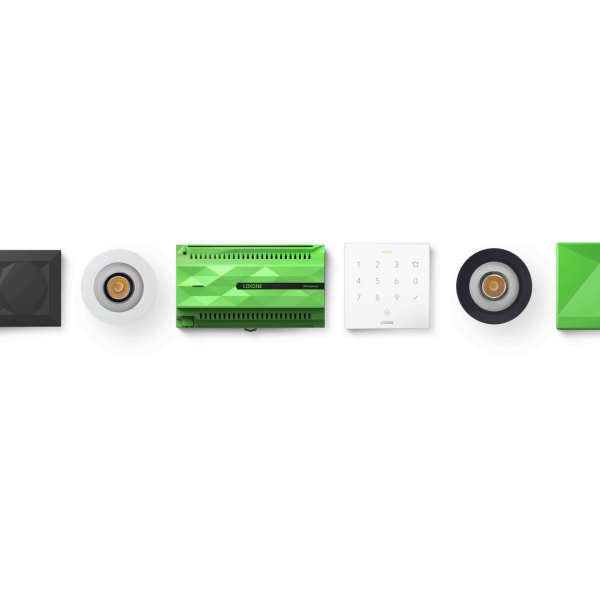

• Expanding range of Tree devices
• Minimal wiring, maximum flexibility

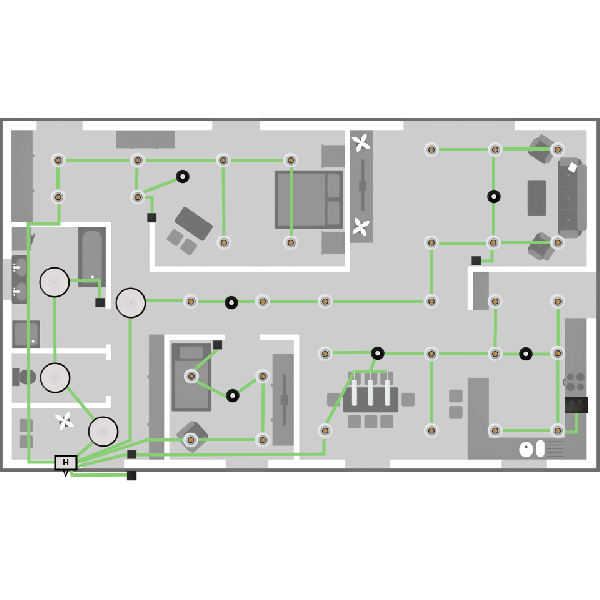

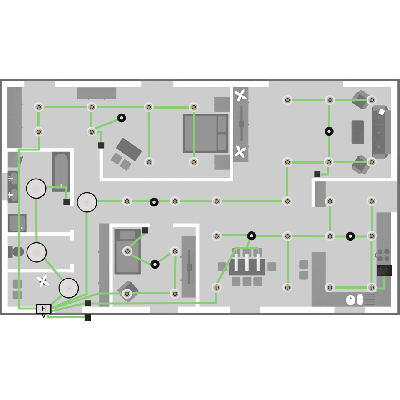

Loxone Tree offers complete flexibility when planning building wiring. The Tree extension has two independent branches, with up to 50 Tree-compatible devices connectable to each branch, allowing you to create custom cabling to suit your building size and needs.

Smart building wiring in record time

Tree technology marks a new era for Loxone smart buildings, offering a simple wiring system that enables modern installation and flexible, scalable configuration.

Reduce cabling by up to 80%

Thanks to the flexibility of Loxone Tree, wiring requirements can be reduced by up to 80%.

Easy configuration in just minutes

Configuring Tree devices in Loxone Config is more modern and efficient.

Loxone development

As always, the Tree hardware and software were developed in a live environment, ensuring compatibility with other Loxone devices.

Technical specifications

• Power supply: 25VDC SELV (min. 9VDC max. 28VDC)
• Power consumption: 115mW
• Protection: IP20
• 2 branches for up to 50 Tree extensions per branch connection
• 2 status indicator LEDs (two colors)
• Operating temperature: 0-55 °C
• Max. cable length: up to 500 meters (depending on wiring topology)
• Stripping length: 5mm
• Cable cross-section: 0.25-0.8 mm²

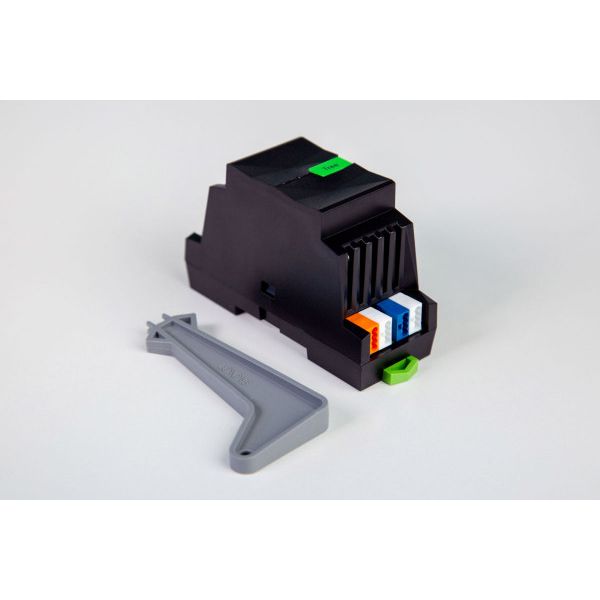

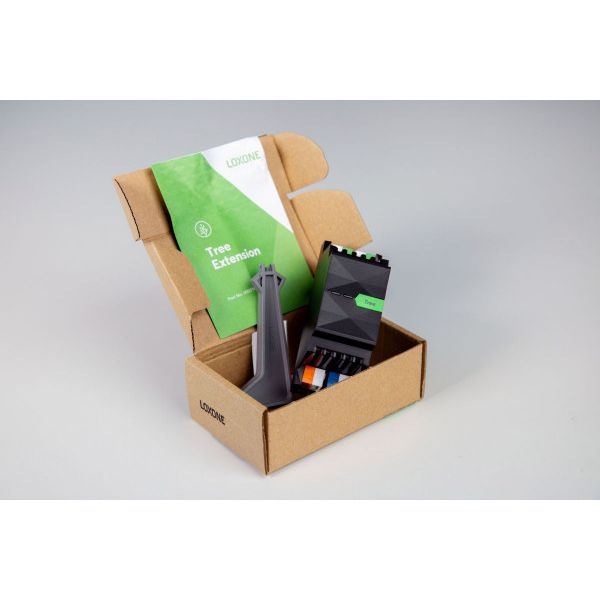

Package contents:

• 1x Tree extension

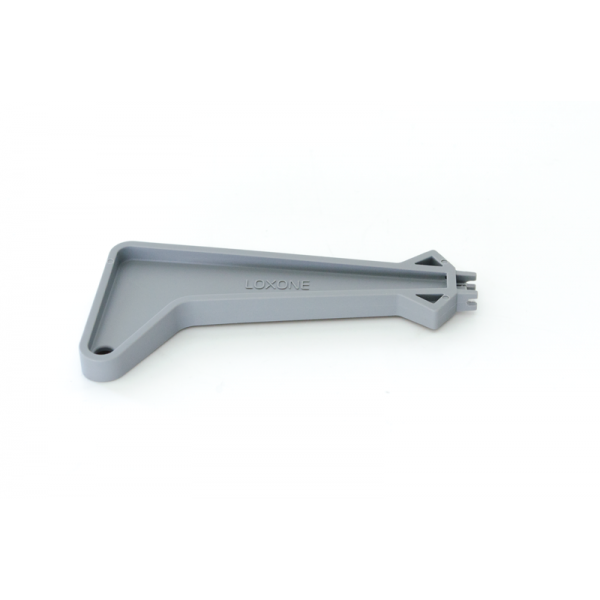

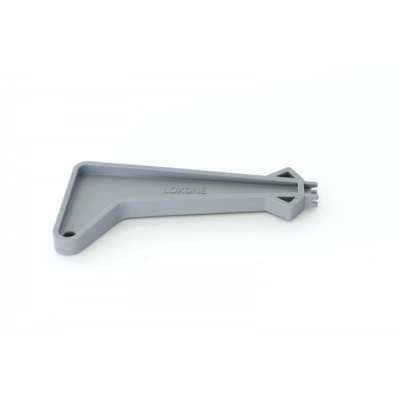

• 1x Tool
