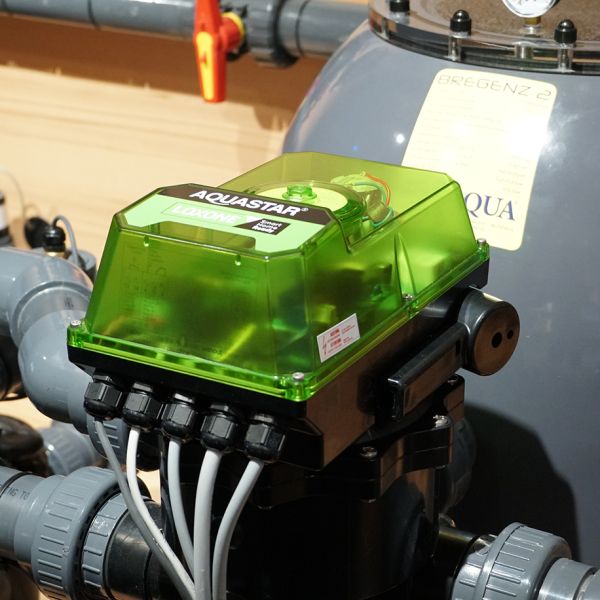

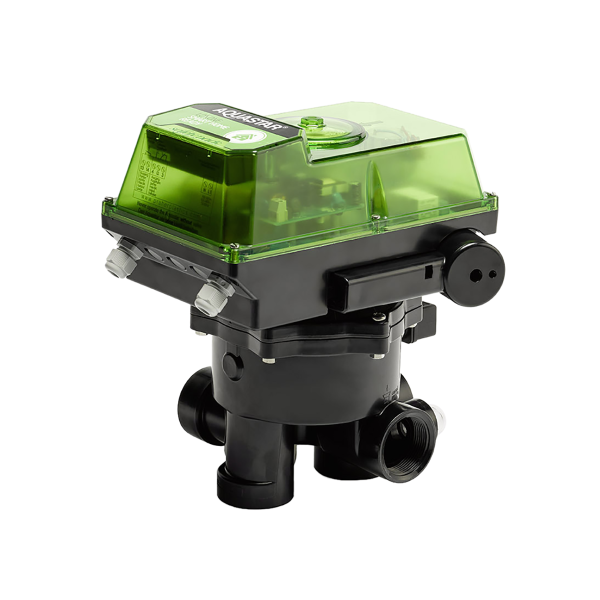

Loxone Aquastar Air SM10 1.5"

• Fully automatic, intelligent control and monitoring of the pool for maximum comfort with minimal time investment
• Regular and automatic cleaning of the pool filter for best water quality
• Includes numerous interfaces for temperature measurement, filter pump, pool cover, counter-current system, etc.
• Control and monitoring even remotely
• Easy commissioning within minutes thanks to the ready-made software module
• Flexible and future-proof thanks to the built-in Loxone Air radio technology

Interfaces

• 1-wire connection option for 1-wire temperature sensors
• 1 analog input 0.5 - 5V (e.g. for pressure sensors)
• 1 analog input 0 - 10V (e.g. for pressure sensors)
• 3 relays 250VAC 5A freely definable
• Loxone® Air technology for wireless connection to the Loxone® Miniserver. Direct pump connection (250V AC, 8A)

Technical specifications

• nominal diameter: 1 1/2"
• material: ABS
• pipe connector type: BSP thread, top+bottom clamp
• pressure: MOP 3.5 bar
• O-ring material: NBR
• seat seal material: TPE
• power supply: 100-240 VAC

• Loxone® AQUASTAR® Air 1.5"
• 1-Wire temperature sensor
• SMA antenna 868 MHz
