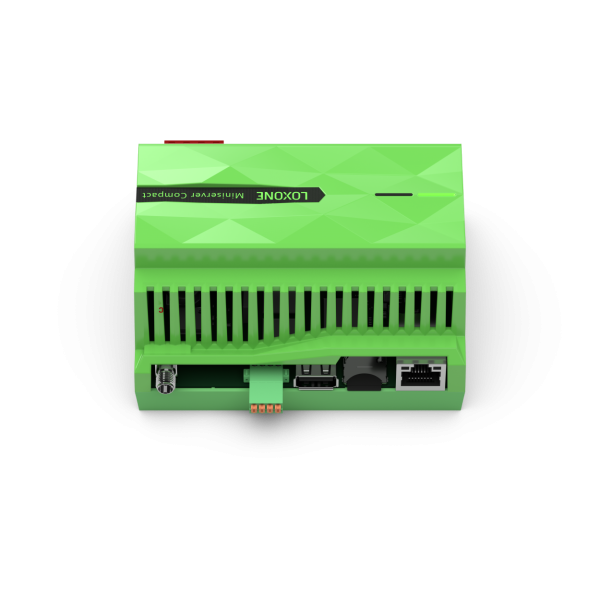

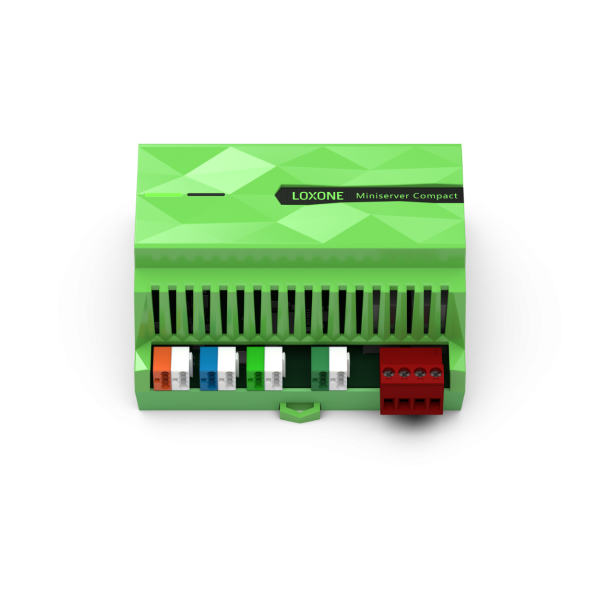

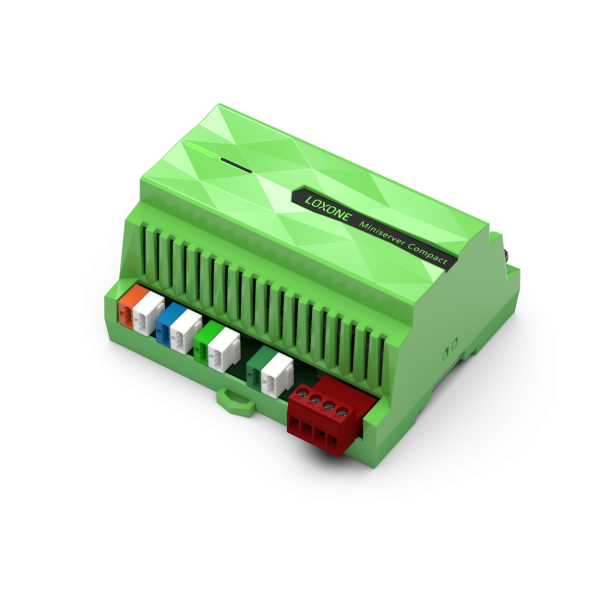

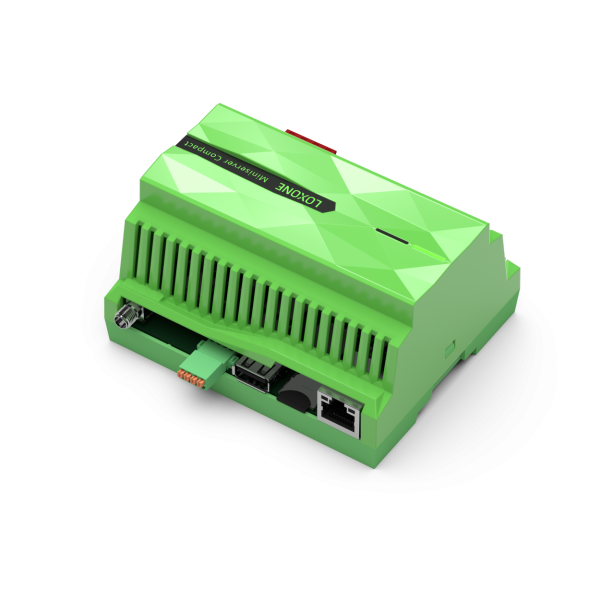

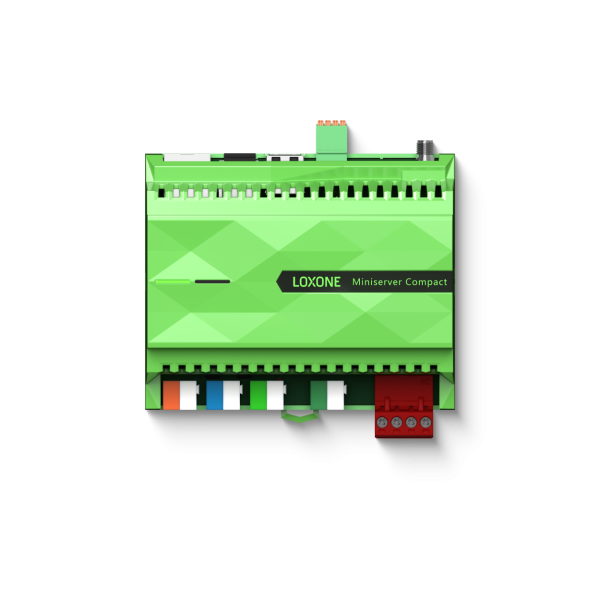

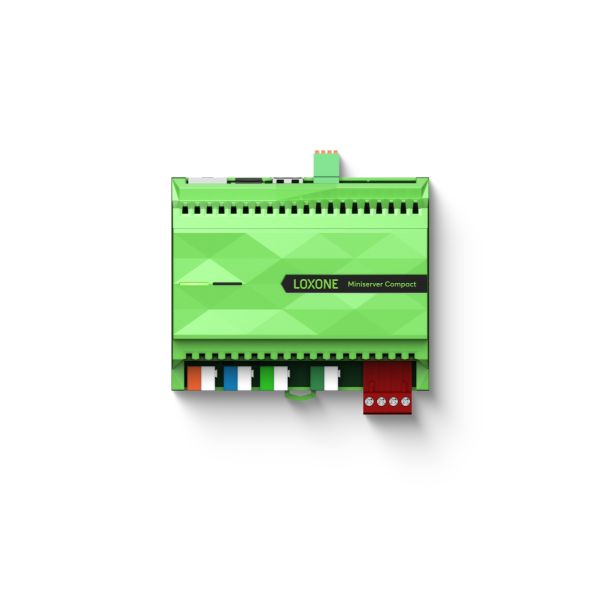

Miniserver Compact

3.292,04 RON 2.592,16 RON

The powerful Loxone Miniserver Compact in compact design, making it suitable for smaller distribution cabinets. The Miniserver Compact includes Loxone Air, Tree and Tree Turbo technology, as well as Audioserver software. Thanks to this, it is a true multimedia all-rounder. Features:

  • 4 digital inputs
  • 2 potential-free digital relay outputs
  • Loxone Link, software switchable to Tree: up to 30 Extensions or 50 Tree devices
  • Loxone Tree: up to 50 Tree devices
  • Loxone Tree Turbo: up to 10 Tree Turbo devices
  • Loxone Air: up to 128 Air devices

Technical data:

- +
Disponibilitate:în stoc
SKU
100512
MarcăLoxone
Loxone Miniserver Compact
Loxone Miniserver Compact
Loxone Miniserver Compact
Loxone Miniserver Compact
Loxone Miniserver Compact

30

Connection of up to 30 expansion modules

128

Akár 128 Air eszköz kezelése

Central Hub

the central unit of automation

128

Management of up to 50 Tree devices

100%

Audio function

100%

Reliability & maintenance-free

No data storage in the cloud - Automation with data security

With Loxone, your data stays where it belongs - on the Miniserver. This is the device on which your data is processed. They do not go out and are not compared to the cloud. Our absolute principle applies: Your project, your data! We protect this personal right 100%.

Remote access through Remote Connect
With our Remote Connect service, specifically designed for this purpose, you can connect reliably and securely to your building's Loxone system anytime and anywhere. Without cloud and third-party devices. Thanks to true end-to-end encryption, your data is not visible on the internet.

Which Miniserver should be chosen for the purposes?

  Miniserver Miniserver Compact Miniserver GO
Article number 100335 100512 100336
Installation method/location DIN rail DIN rail Anywhere
Space requirement 9 DIN units 6 DIN units 90 x 90 x 20 mm
Loxone Air bővíthető ✔ ✔
Loxone Tree ✔ ✔ expandable
Loxone Link ✔ ✔ ✔
Audio function bővíthető ✔ expandable
LAN interface ✔ ✔ ✔
Digital inputs 8 digital inputs (+expandable) 4 digital inputs (+expandable) expandable
Digital outputs 8 relay outputs (+expandable) 2 relay outputs (+expandable) expandable
Expansion module connection ✔ ✔ ✔

Information according to the provisions of the data sharing regulation (EU Data Act)

The Loxone Miniserver is classified as a connected product within the meaning of Regulation (EU) 2023/2854 (Data Act). By default, no data is transmitted to Loxone or third parties. All device data is processed and stored locally on the Miniserver. Once the user configures their own functions, they can retrieve all resulting data through the transparently documented Loxone API in structured, machine-readable format and use it further if needed. Loxone does not perform automatic or hidden data collection.

Mai multe informatii
Mai multe informatii
SKU 100512
Producător Loxone Electronics GmbH.
Details List
  • 4 digitális bemenet
  • 2 digitális relé kimenet, potenciálmentes
  • LOXONE Link, szoftveresen Tree-re átkapcsolható: legfeljebb 30 bővítő modul vagy 50 Tree-eszköz
  • LOXONE Tree: legfeljebb 50 Tree-eszköz
  • LOXONE Tree Turbo: legfeljebb 10 Tree Turbo-eszköz
  • LOXONE Air: legfeljebb 128 Air-eszköz
Technical List
  • Termék méretei: 106,4 × 88 × 59 mm (H × Sz × M), 6 osztásegység

Szükséges tartozékok:
What is in the box?
  • 1x Miniserver Compact
  • 1x Mappa
  • 1x Loxone matrica
  • 1x 120 Ohm ellenállás
  • 1x SD kártya (a foglalatban)
  • 1x Tree betűző eszköz (a tree kábel szelepmozgató motor bilincs csatlakozóba való préselésekor használatos)
Marcă Loxone
Fișă tehnică

Adatlap

Relé adatlap
Declarație de conformitate

Megfelelőségi nyilatkozat
Tariff No. 85371091
