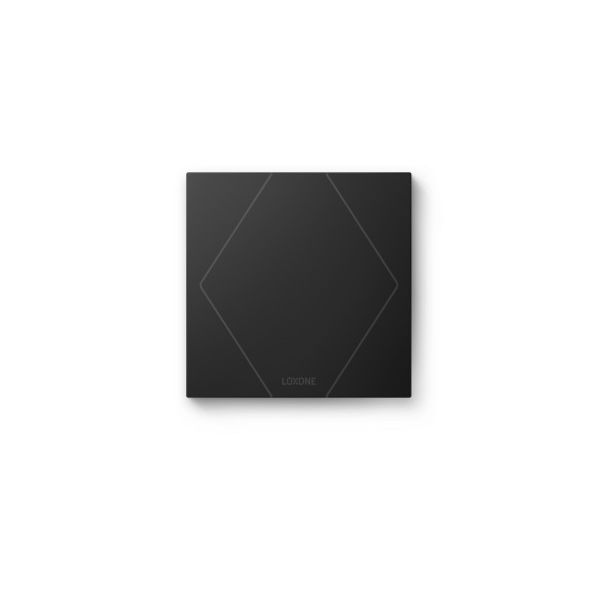

Loxone Touch Pure for Nano anthracite

1.023,86 RON 806,19 RON

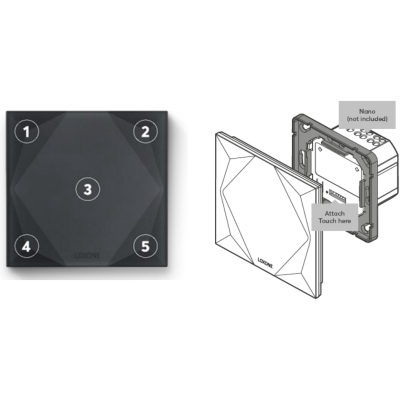

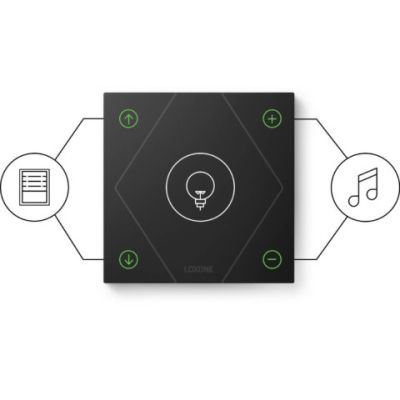

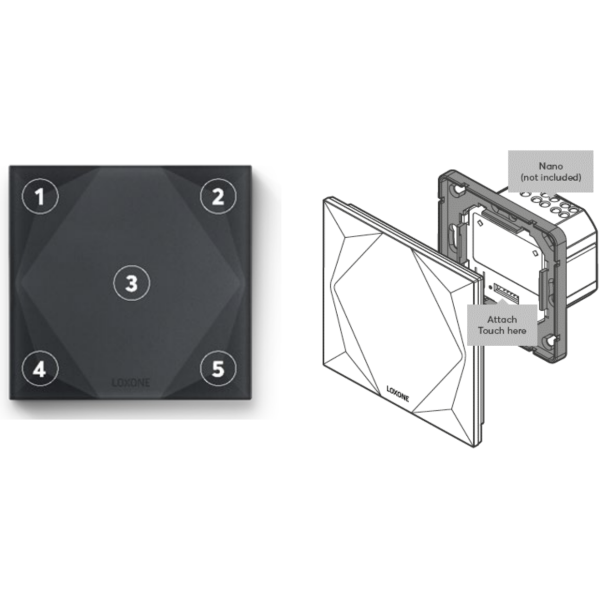

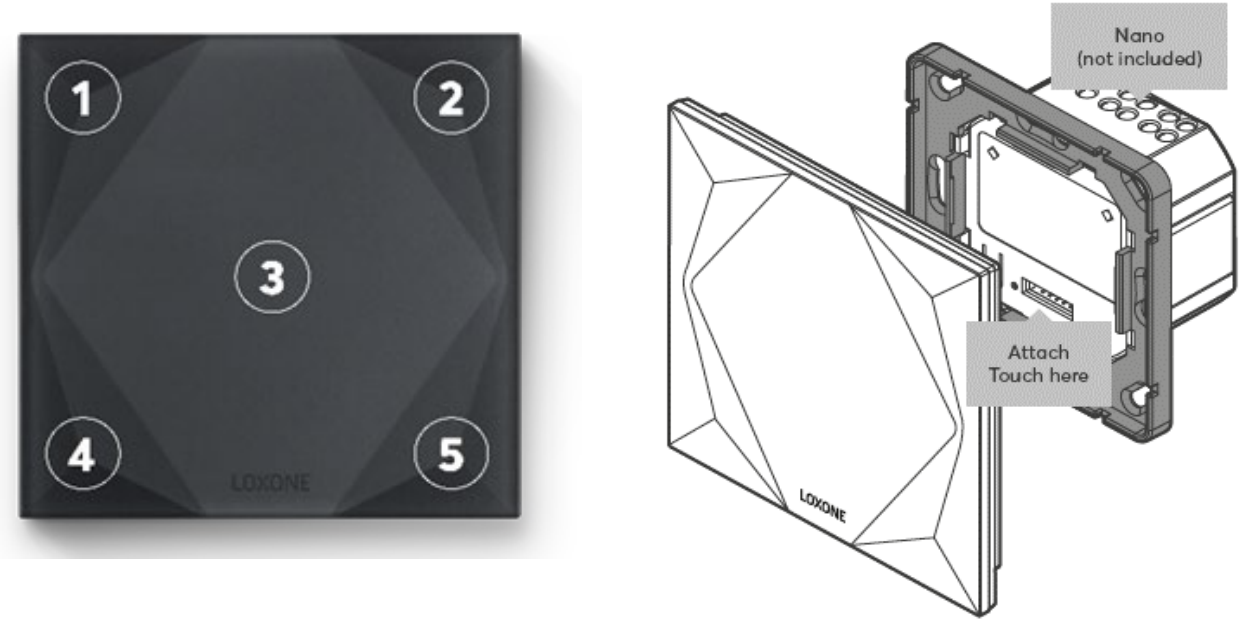

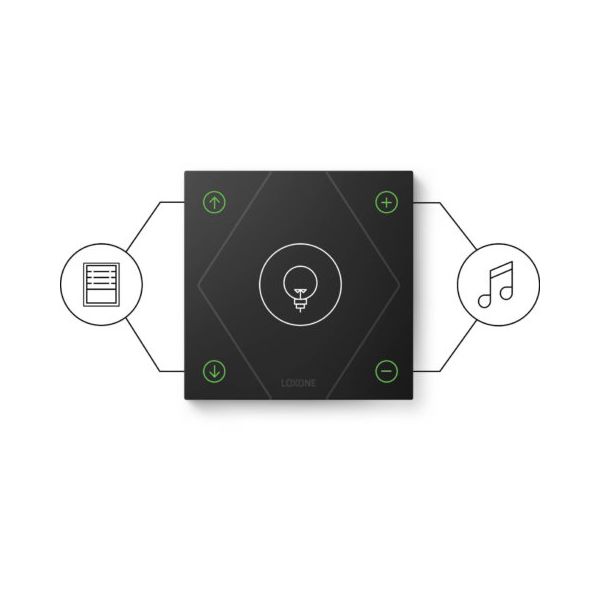

The Loxone Touch Pure for Nano is a module that can be plugged into the Loxone Nano IO Air or the Nano Dimmer Air. It has five touch points on a glass front for operating the most important functions in a room. When a button is touched, a click is heard as acoustic confirmation. An orientation light enables the device to be identified in the dark.

- +
Disponibilitate:în stoc
SKU
100586
MarcăLoxone
Touch Pure products comparison
  Touch Pure Tree Touch Pure Air Touch Pure Tree CO2 Touch Pure for Nano
Power supply 24VDC Battery 24VDC 24VDC Nano IO Air/Nano Dimmer Air
Area of application New building Retrofitting Retrofitting New building Retrofitting
Temperature sensor ✔ ✔ ✔ ✔ X
Humidity sensor ✔ ✔ ✔ ✔ X
CO2 sensor X X X ✔ X
Orientation light ✔ X ✔ ✔ ✔

Mai multe informatii
SKU 100586
Producător Loxone Electronics GmbH.
Culoare Anthracite
Details List
  • javasolt szerelési magasság: 135 cm
  • méretek: 90x90x23mm (HxSZxM)
Technical List
  • tápellátás: Nano IO Air, vagy Nano Dimmer Air eszköz csatlakoztatásával
  • üzemi hőmérséklet: -20...70 °C
  • érintőfelületek: 5 kapacitív érintési pont
  • hang visszajelzés: igen
  • környezeti páratartalom: maximum 95% (relatív)
  • IP védettség: IP40
What is in the box?
  • 1x Touch Pure Classic for Nano antracit
  • 1x Felhasználói útmutató
  • 1x rögzítőkeret
Marcă Loxone
Fișă tehnică

Adatlap

Declarație de conformitate

Megfelelőségi nyilatkozat

Tariff No. 85269200
